CNC Engraving and Milling Machine

JINGDIAO 3-axis high-speed machining center JDHGT400T

It applies to the milling of micro-electrodes and precision mold parts, and precision hole grinding of metals and special materials.

It can steadily achieve a 2 μm−5 μm machining precision if appropriate software and hardware are configured.

X/Y/Z axis working stroke: 400/400/200 mm

Workbench dimensions: 530x430 mm

Workbench load capacity: 300 kg

021-5456 1588

Online Message

product details

Video

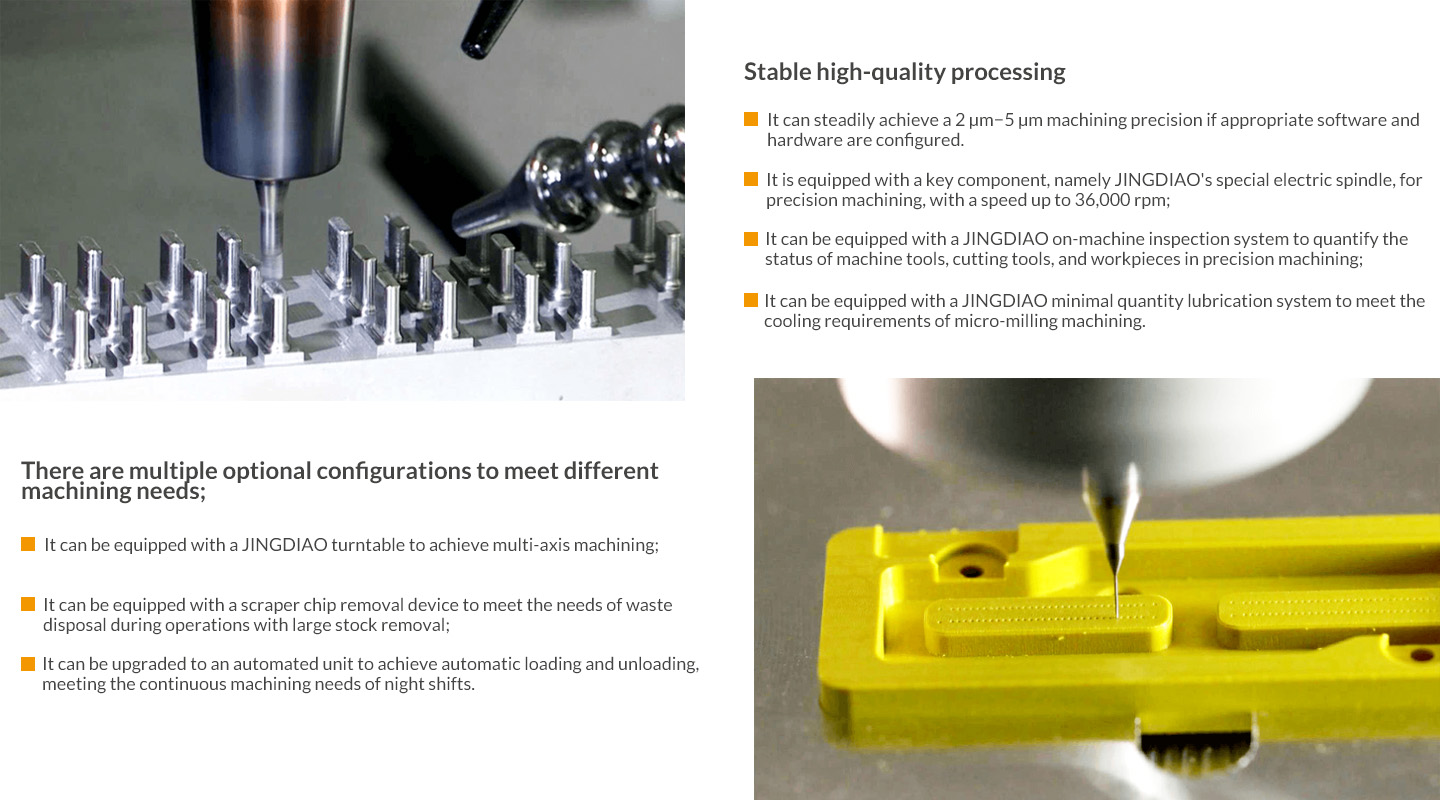

Equipment highlights


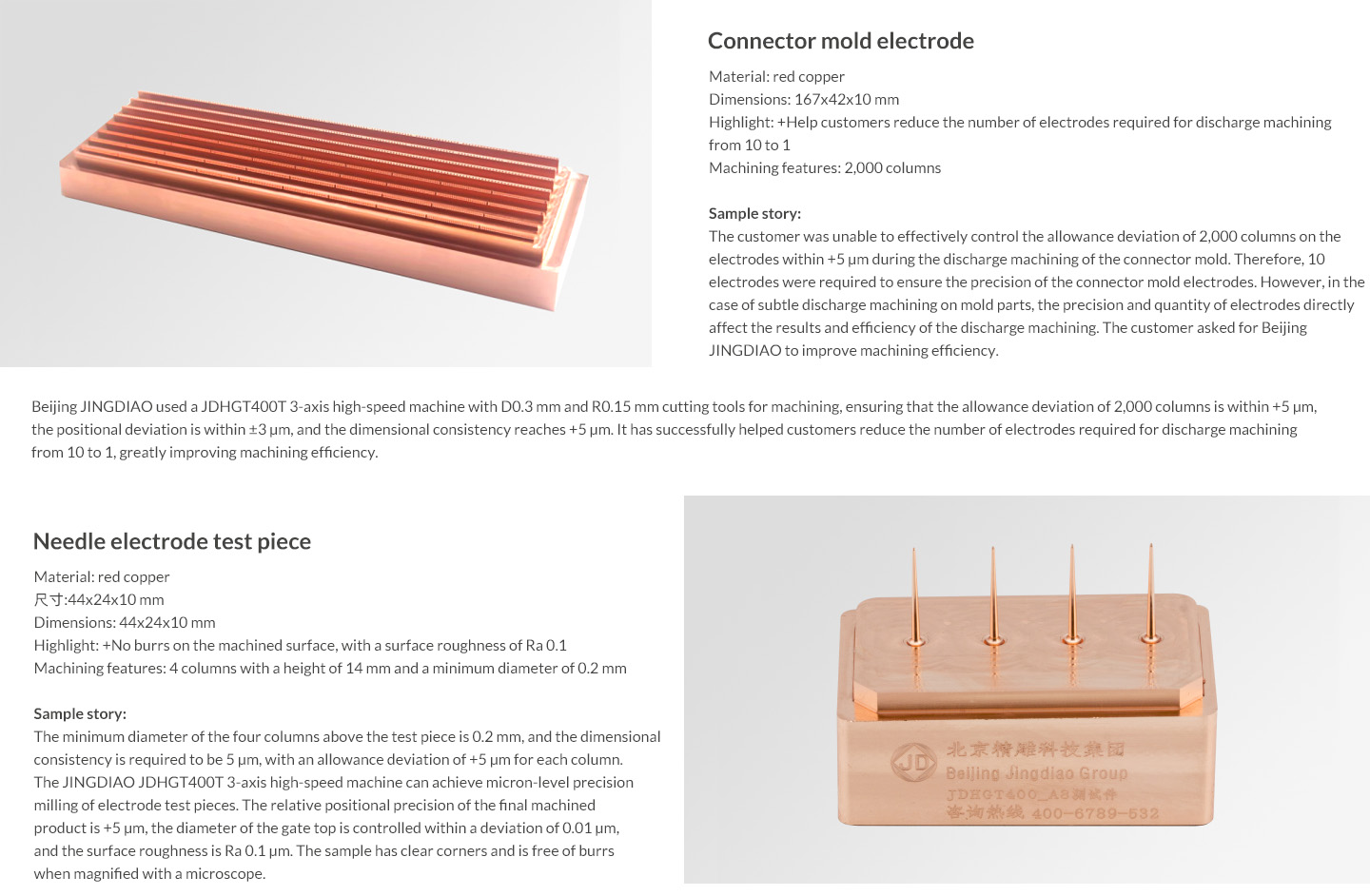

Application cases


Technical parameters

Item	Standard value
X/Y/Z-axis motion positioning accuracy	0.002/0.002/0.002mm
X/Y/Z-axis repeated positioning accuracy	0.0018/0.0018/0.0018mm
X/Y/Z-axis working stroke	400/400/200mm
Workbench dimension	530×430mm
Maximum load	300kg
Maximum spindle speed	36000rpm	32000rpm
Knife handle specification	ISO20	HSK-E32
Tool magazine capacity	20 (umbrella-type tool magazine)/37 (chain-type tool magazine)
X/Y/Z-axis fast movement speed	15m/min
Maximum cutting feed rate	10m/min
Driving system	AC servo
Operating voltage	Three-phase 380 V/50 HZ
Air pressure	≥0.52MPa
Total weight of machine tool	5100kg

• The above position parameters are calibrated according to the international standard ISO230-2

Configuration

Standard configuration	Optional configuration
JINGDIAO JD50 CNC system	Cutting fluid refrigerating machine
JINGDIAO CAM software JDSoft SurfMil with high-speed and high-precision CNC function and advanced configuration package grating ruler to realize full closed-loop control	Scraper chip removal and filtration system
Spindle and drive system refrigerating machine	Built-in spiral chip remover
Laser tool setting gauge	Bag filter
Contact probe	Minimum oil mist lubrication device
Contact type tool setting gauge	Image measurement system (CCD)
Standard ball + cutting fluid tank + refrigerant dryer	Automatic feeding system (self-produced by JINGDIAO)
Oil mist reclaimer	Automatic door + built-in sprinkler system
	Tabletop cleaning module
	Fixture control module
	4-axis rotary workbench
	Ring gauge

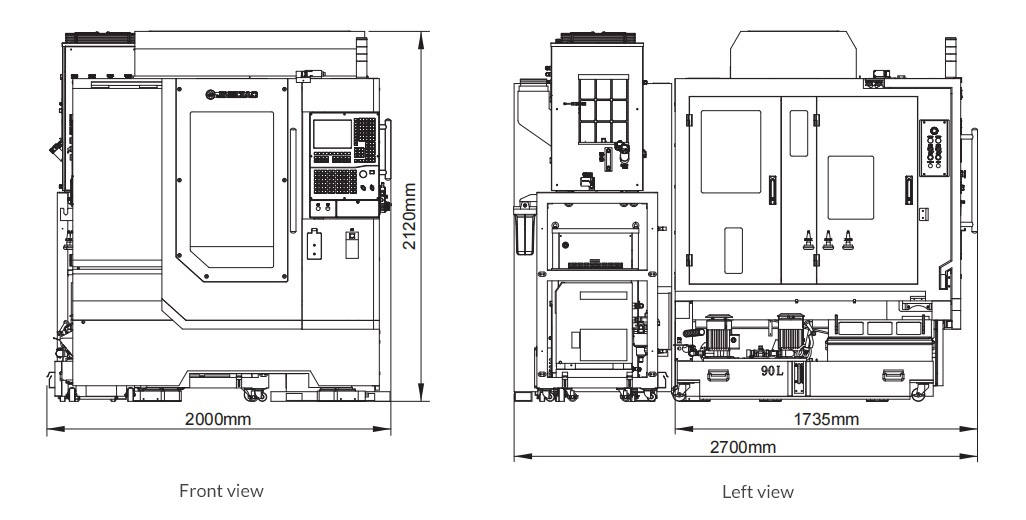

Mounting dimension
