Features

1. The spindle bearing adopts imported precompressed high-precision bevel ball bearing, ensuring the high rigidity and high precision of the spindle.

2. The integrated turret with accurate indexing: The turret, sliding saddle and other castings are enlarged and weighted, which further enhances the heavy cutting performance. Servo programmable tailstock, movable center configured as standard (built-in rotary sleeve as an option)

3. The guide rail of the lathe is widened, and the diameter of the lead screw is increased, to further improve the chip rigidity of the lathe, which is more conducive to re-cutting.

Product machining and application

This series of lathes are used in automobiles, construction machinery and agricultural machinery, processing products, energy industry, medical industry and mass parts machinery.

Tornos CNC Aplicación en.jpg

Cases

Processing industry, can be used for processing of linear cylinder, diagonal cylinder, circular arc and various threads, grooves, worms and other complex parts, typically gear shaft, nozzle pulley, brake disc, piston, filter head, valve guide, and full protective accessories.

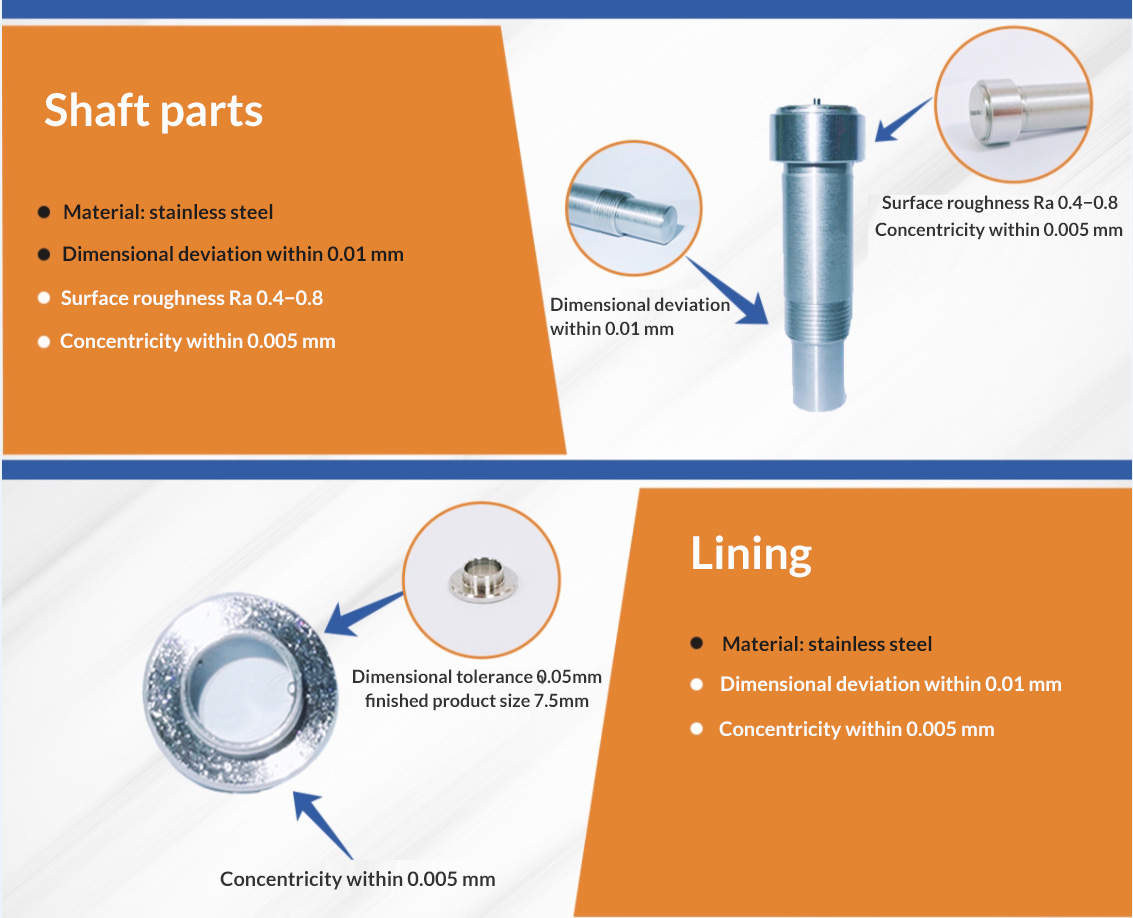

Typical processed parts

Automobile parts

Valve bearings

Aerospace and aviation field

Efficient processing of aviation parts to help precision manufacturing enterprises improve quality and efficiency

Lathe specifications

Item			Unit	Specification
Machining range	Maximum rotating diameter		mm	ø580
	Maximum diameter to be machined × length		mm	ø370×470
	Through-hole diameter of spindle		mm	ø62	ø 76（Optional）
	Maximum diameter for bars to pass		mm	ø51	ø 65
	Maximum supporting weight		Kg	200
Spindle	Maximum rotating speed of spindle		rpm	4500
	End type of spindle		KSA	A2-6
	Size of chuck		inch	8″Hollow chuck
Feed	Maximum travel length	X-axis	mm	210
		Z-axis	mm	480
	Fast moving speed	X-axis	m/min	30
		Z-axis	m/min	36
Turret	Total number of tools		ea	12
	Tool changing time		sec	0.23
	Height of outer arbor		mm	25X25
	Maximum diameter of inner arbor		mm	ø40
	Across flat of cutter		mm	410
	Machining range with the end face turning passing through the spindle center (φ40 boring cutter can be installed at adjacent cutter positions)		mm	φ200
Tailstock	End type of tailstock spindle			MT4（live center）
Motor	Spindle motor		kW	11/15
	Spindle torque		Nm	183(334Max.)
	Servo motor	X-axis	kW	1.8
		Z-axis	kW	1.8
Others	Total power of lathe		kW	21
	Capacity of cooling box		L	120
	Capacity of oil lubrication device		L	1.8
	Floor area	Height	mm	1815
		Length	mm	2933（No side chip conveyor）
				3735（Including side chip conveyor）
		Width	mm		1862（No rear chip conveyor）
					2715（Including rear chip remover）
	Total weight of lathe		kg		4500

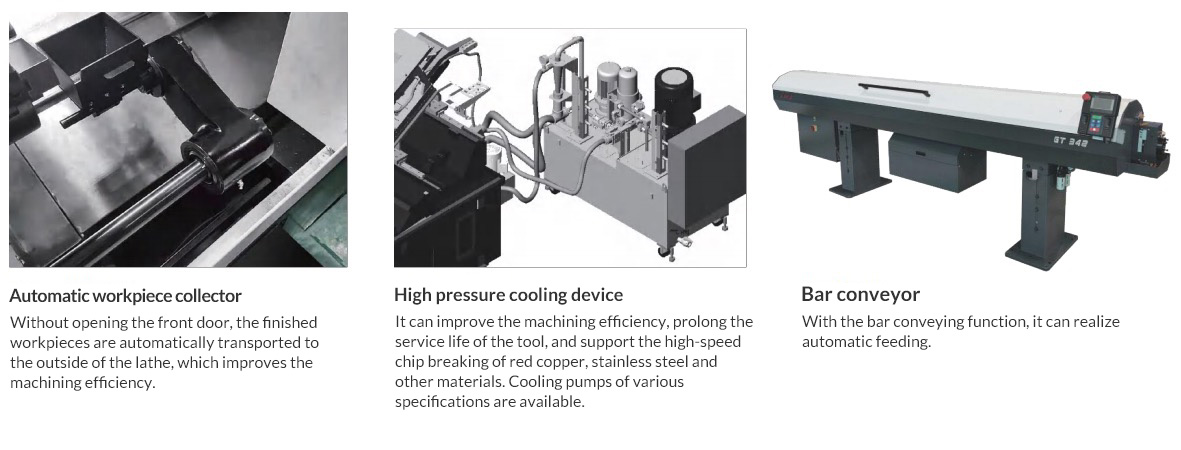

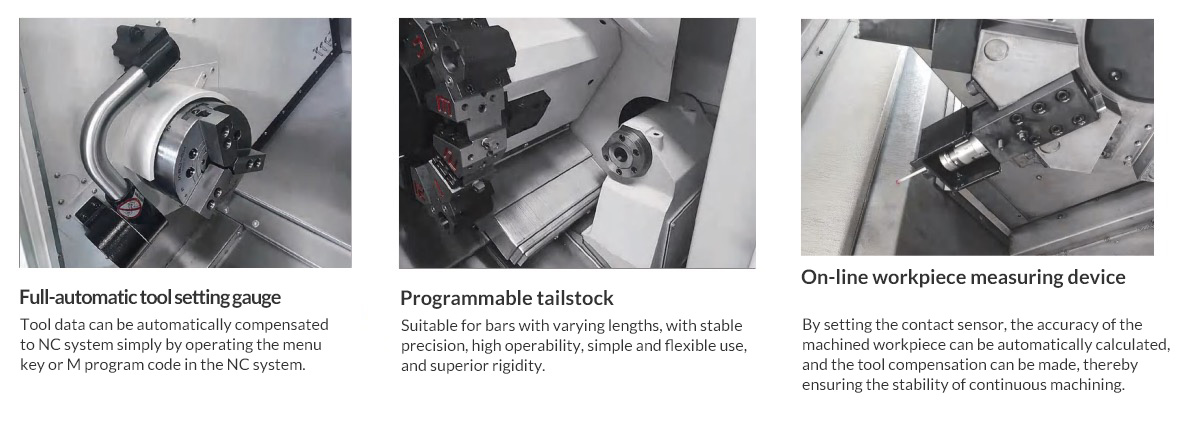

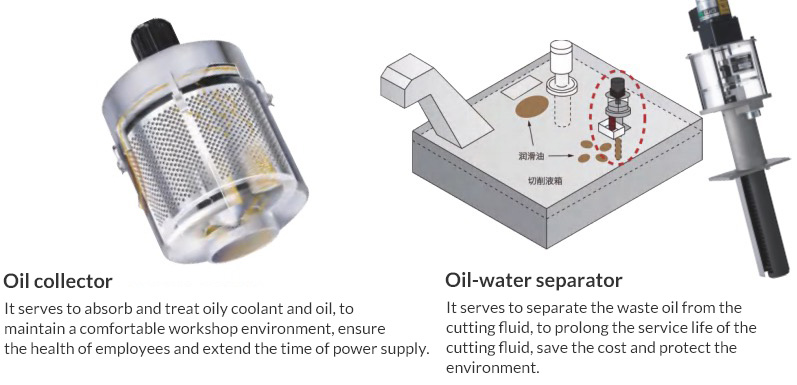

Optional accessories
