product details

Product introduction

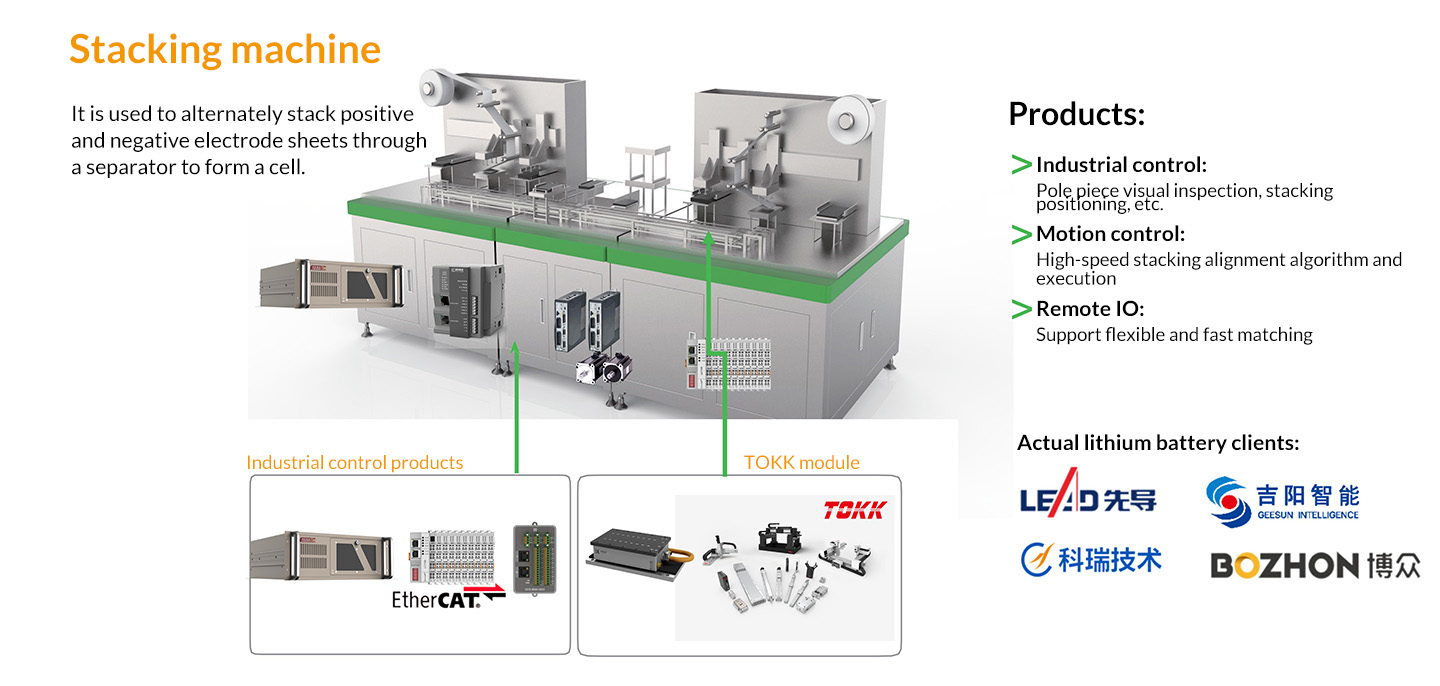

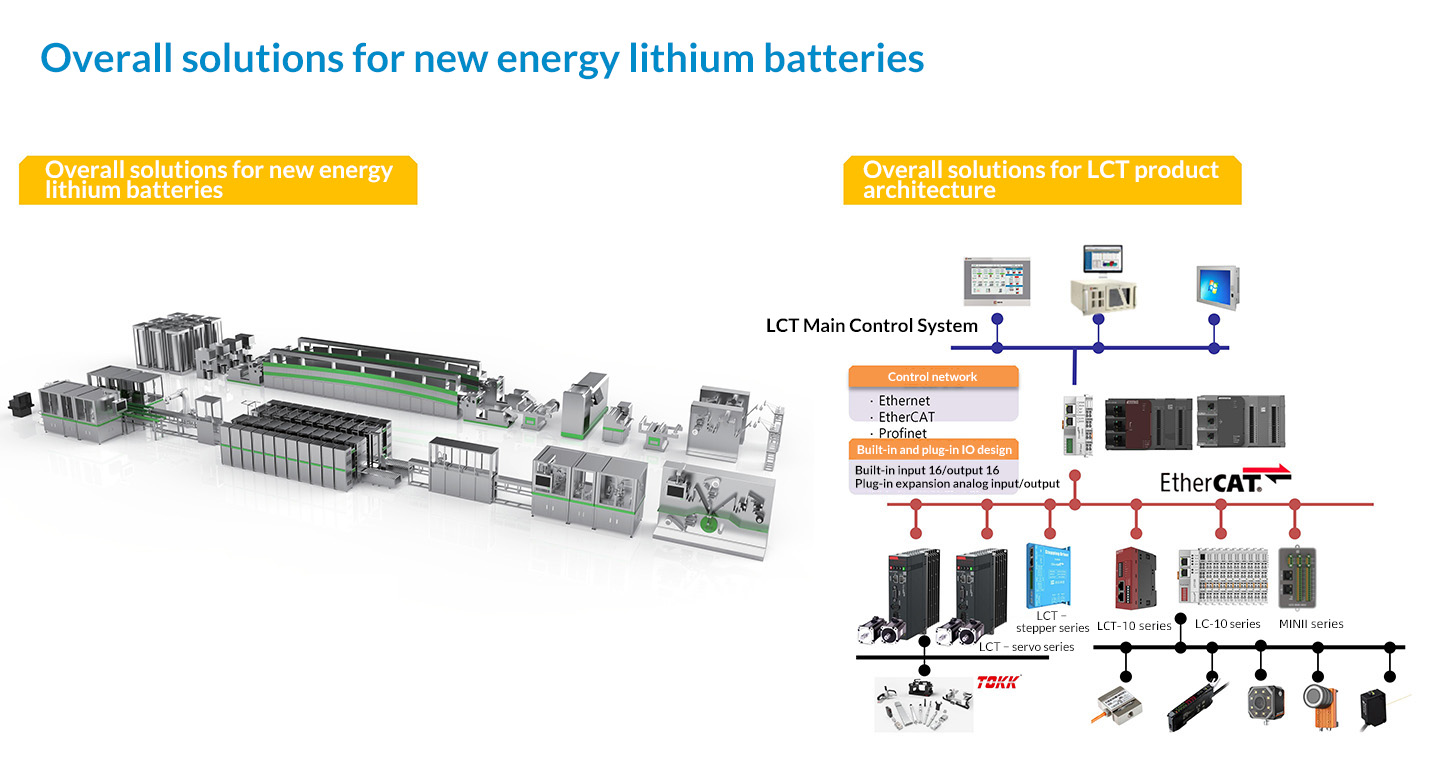

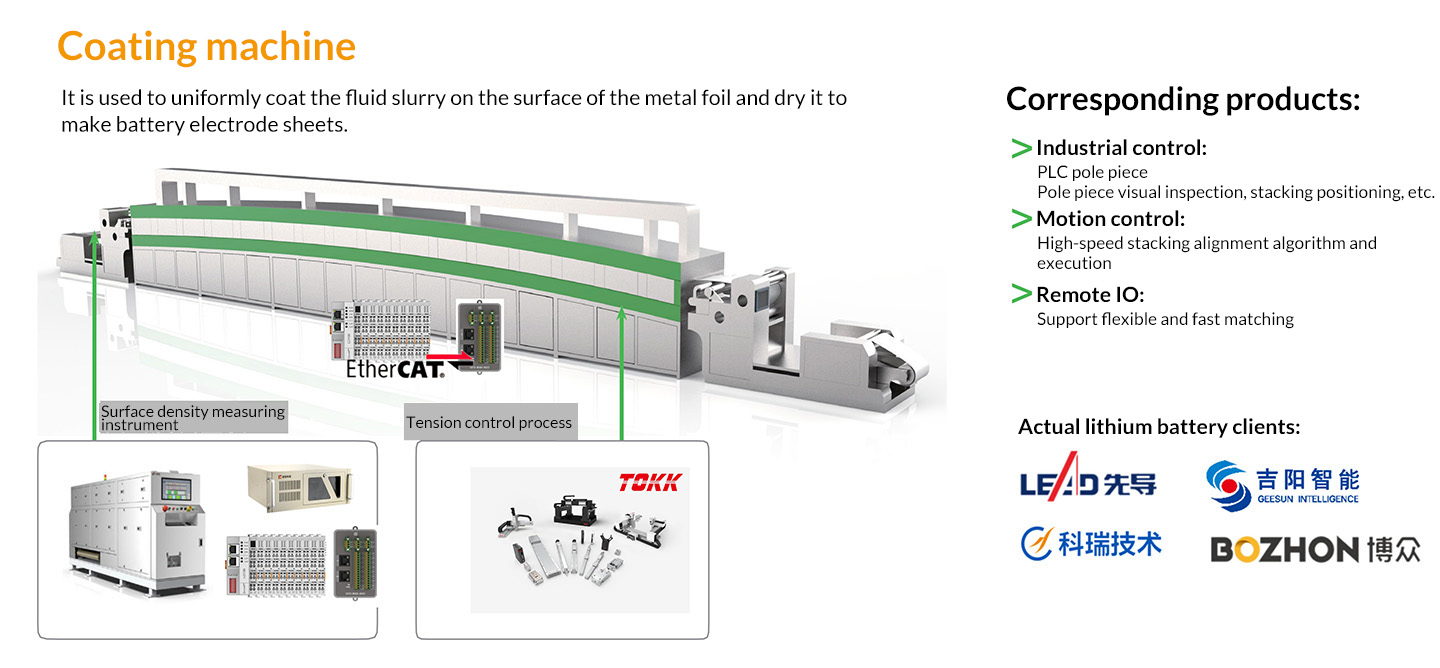

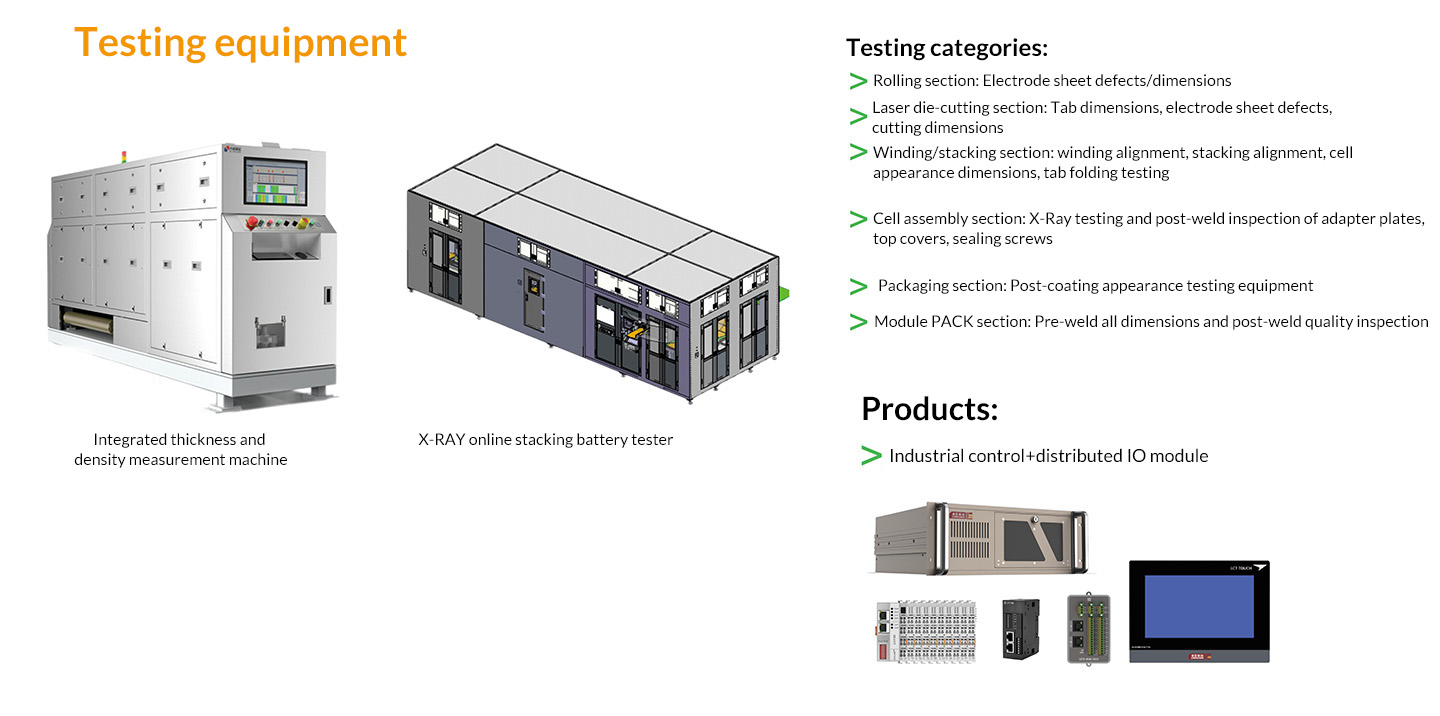

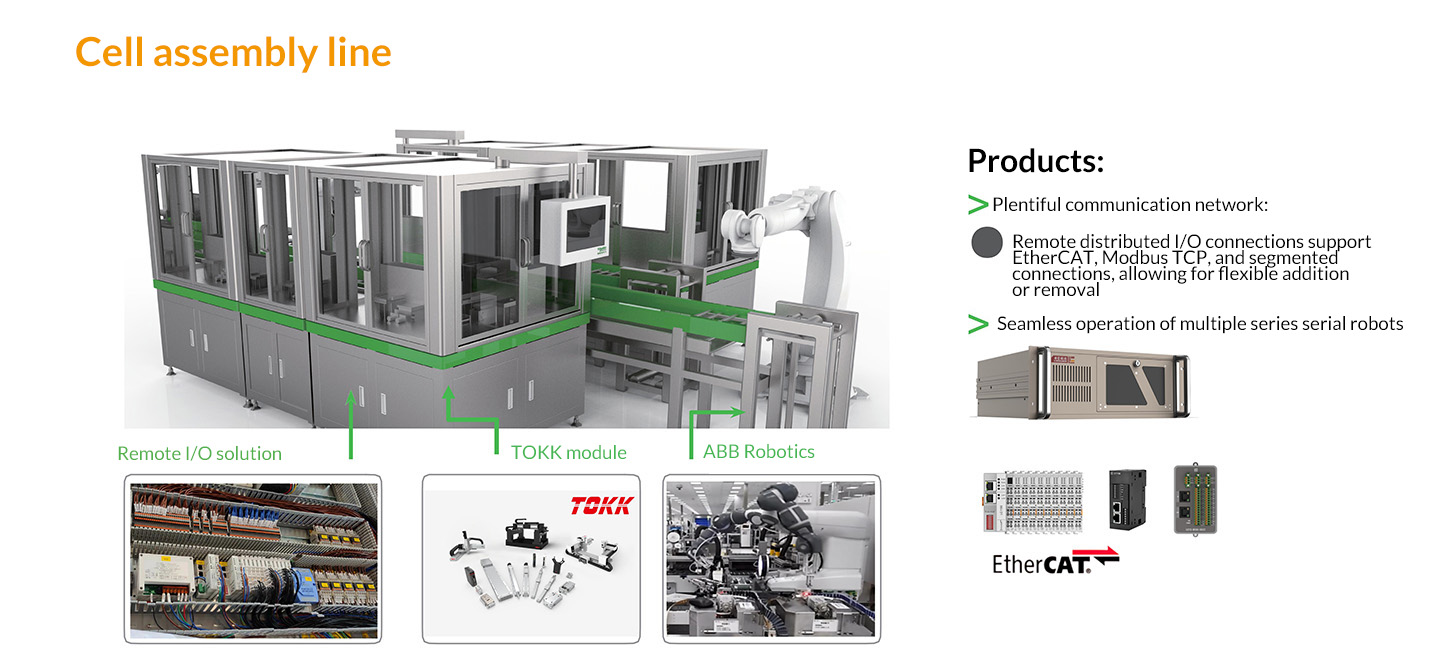

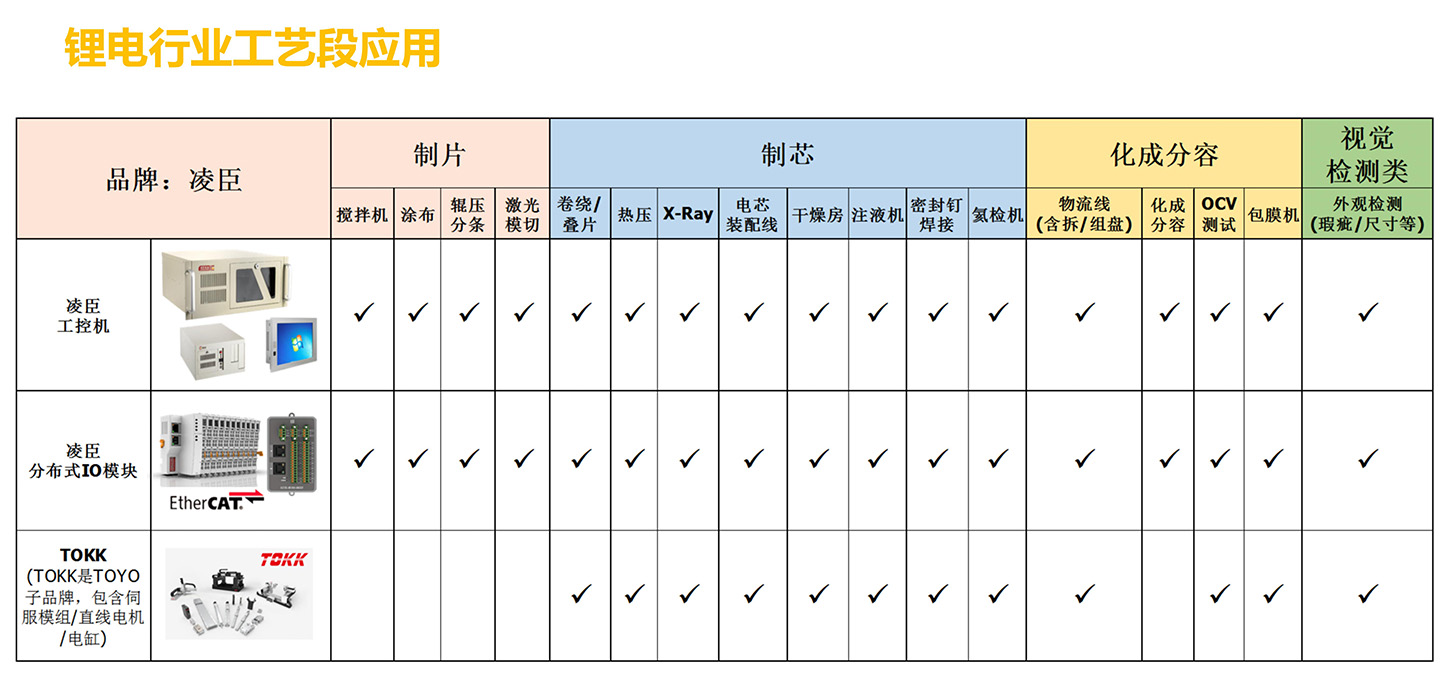

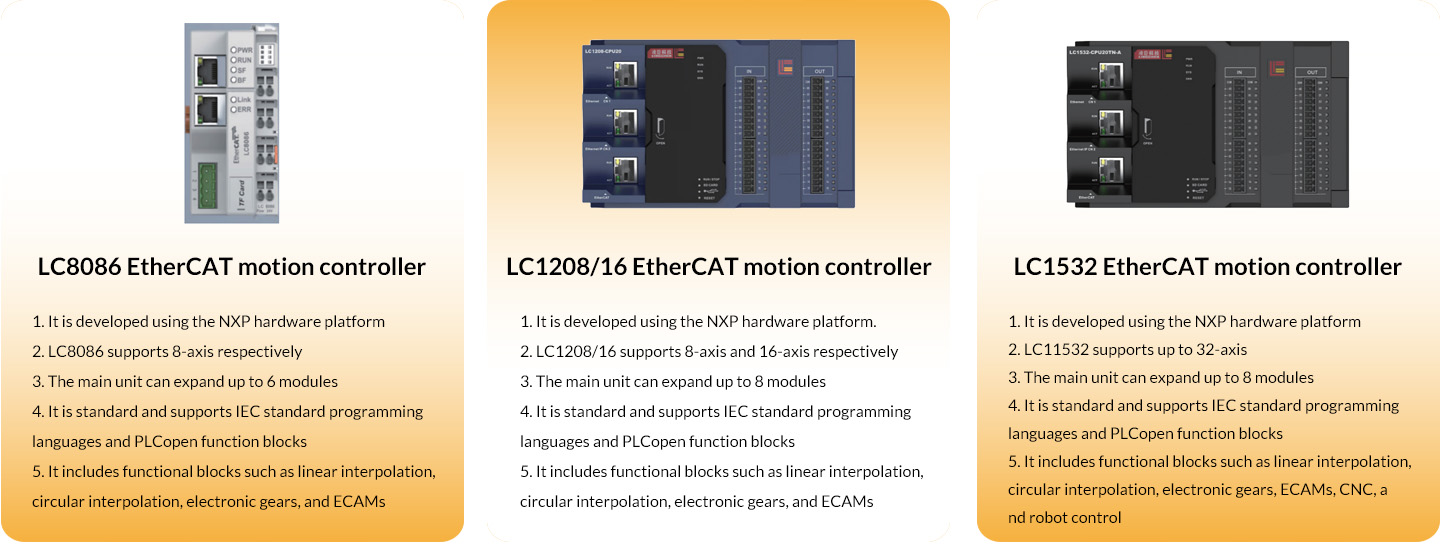

Developed on the CODESYS platform, covering three major product lines: medium, small, and thin types

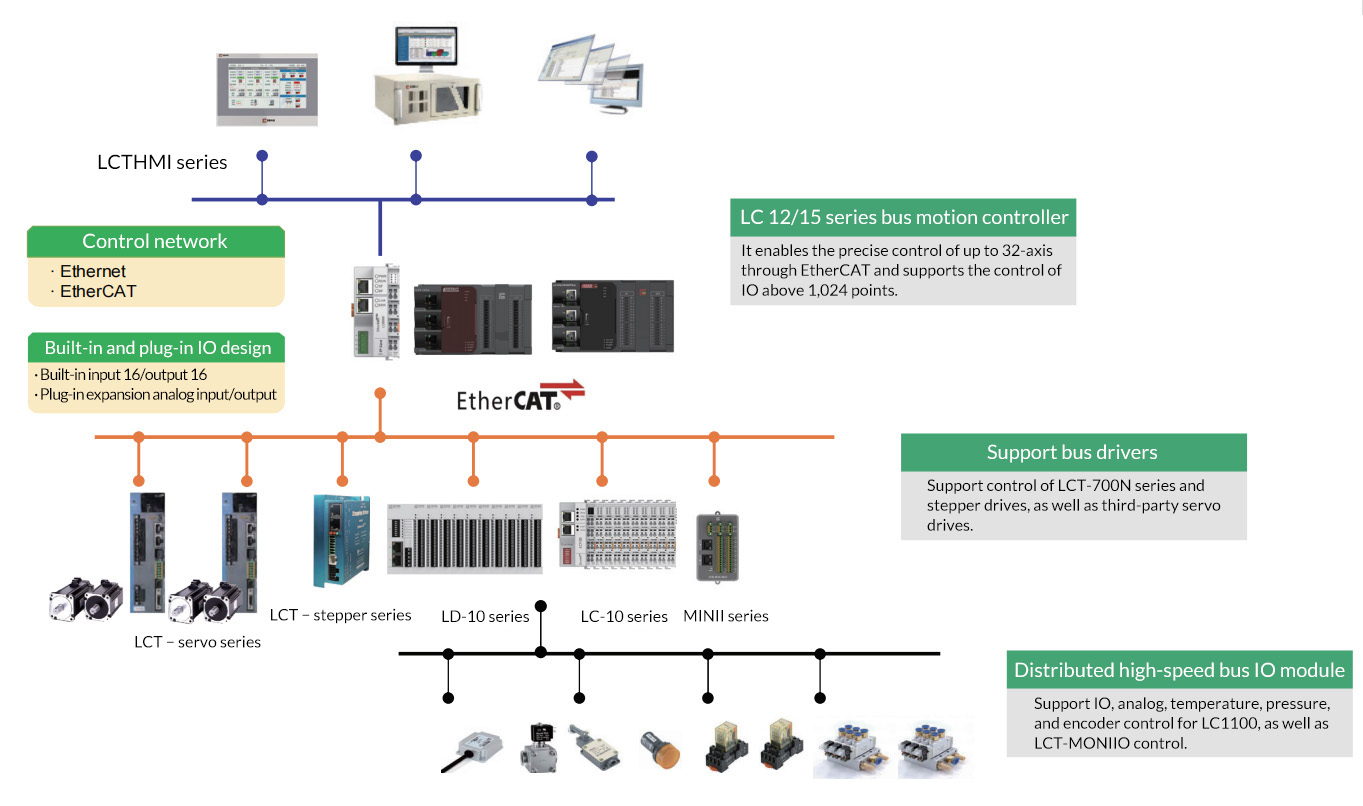

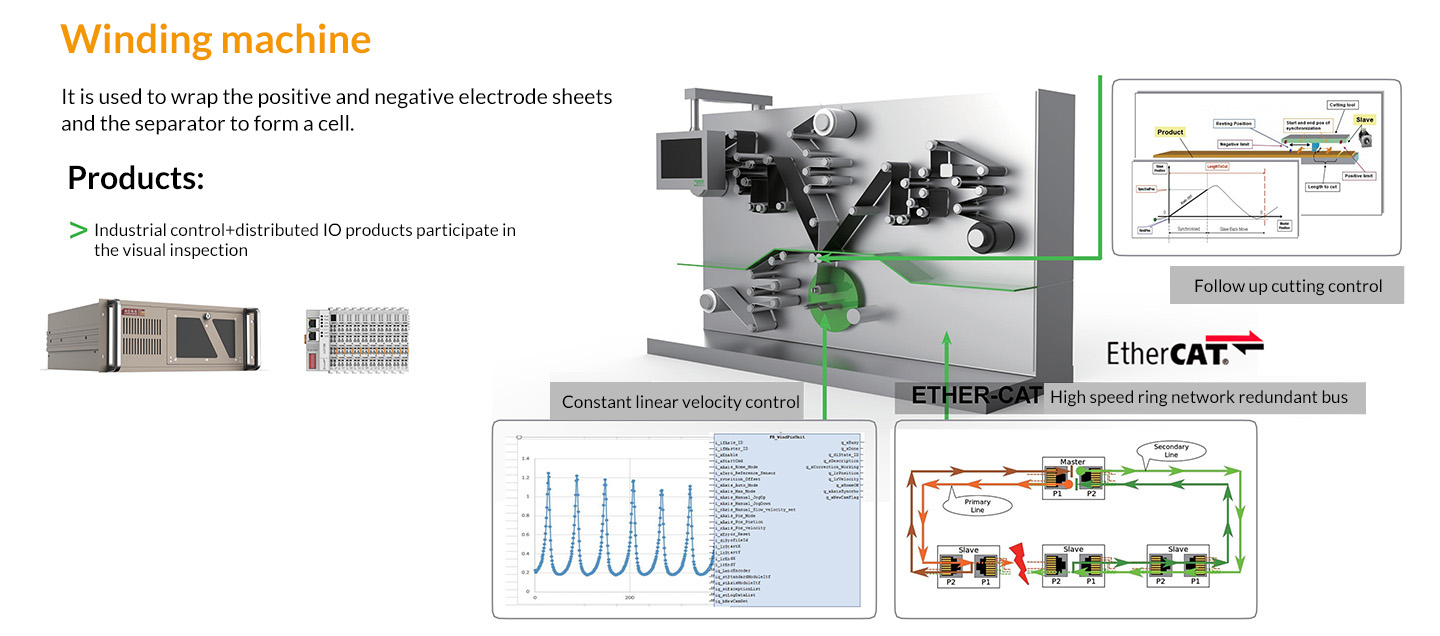

1. Network control

Equipped with its own EtherCAT port and 2 Ethernet IP ports, it can easily establish the network and industrial Ethernet and can be used as a slave station to facilitate connection with HMI

2. Multiple communication ports

Equipped with interfaces such as RS232 and RS485, it can connect various instruments, variable-frequency drives (VFD), servos, and other third-party devices

3. High-speed computing

The high-end chip processor is used, with 1.2 G clock speed, which can achieve fast data processing

4. Powerful scalability

Our LC1100 and LD1100 can be configured to extend digital and analog quantities, temperature modules, etc., and easily control on-site equipment

■ Abundant control functions Eithericat bus can be extended to 32-axis; ■ Functional module standard Support IEC61131-3 standard; ■ Powerful scalability Multiple industry functional algorithms

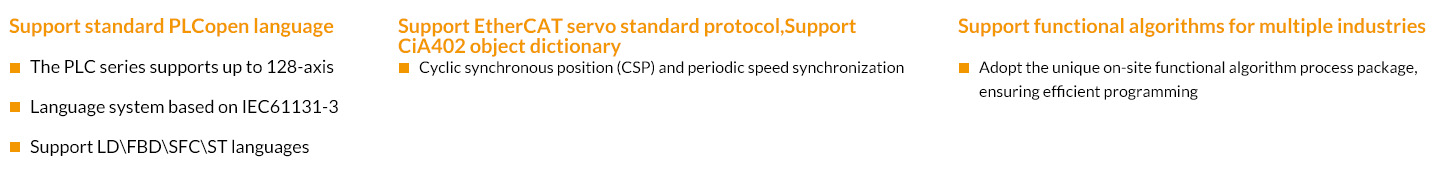

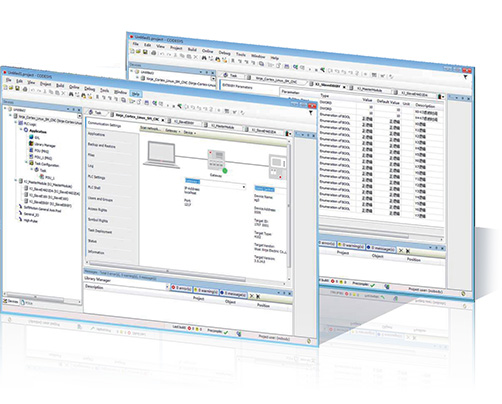

Efficiency improvement based on the CODESYS programming platform


Fully support PLCOPEN protocol specifications and conform to the engineer's habits

Allow the introduction of standard function libraries and FBDs

Linson Technology has developed proprietary functional blocks and instruction libraries based on industry experience

More communication nodes, significantly improving real-time performance and stability



Product Features

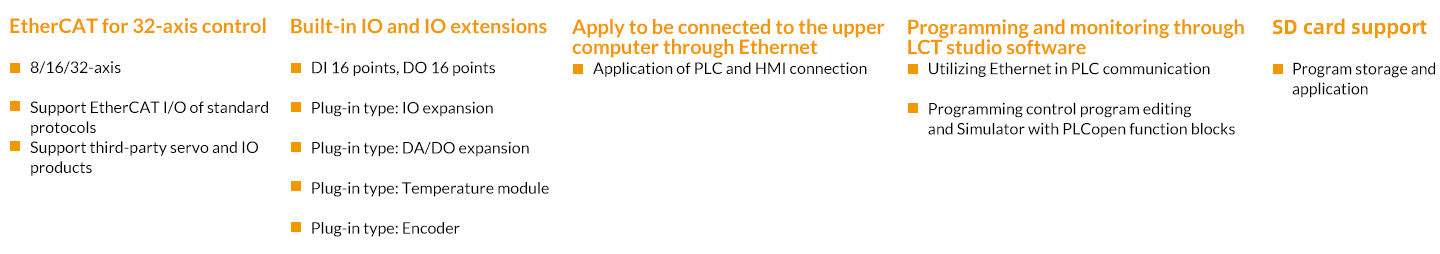

Characteristics of LCT series PLC motion controllers

The LCT-LC series PLC motion controllers are controllers designed for high-demand application scenarios. They support control up to the PART4 level (excluding robots) and support multiple high-speed encoder interfaces and output interfaces in hardware. In addition, they can easily achieve high-speed position comparison output, high-speed position latch, and other functions.

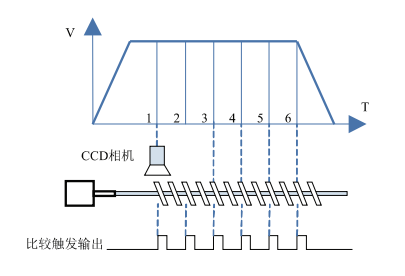

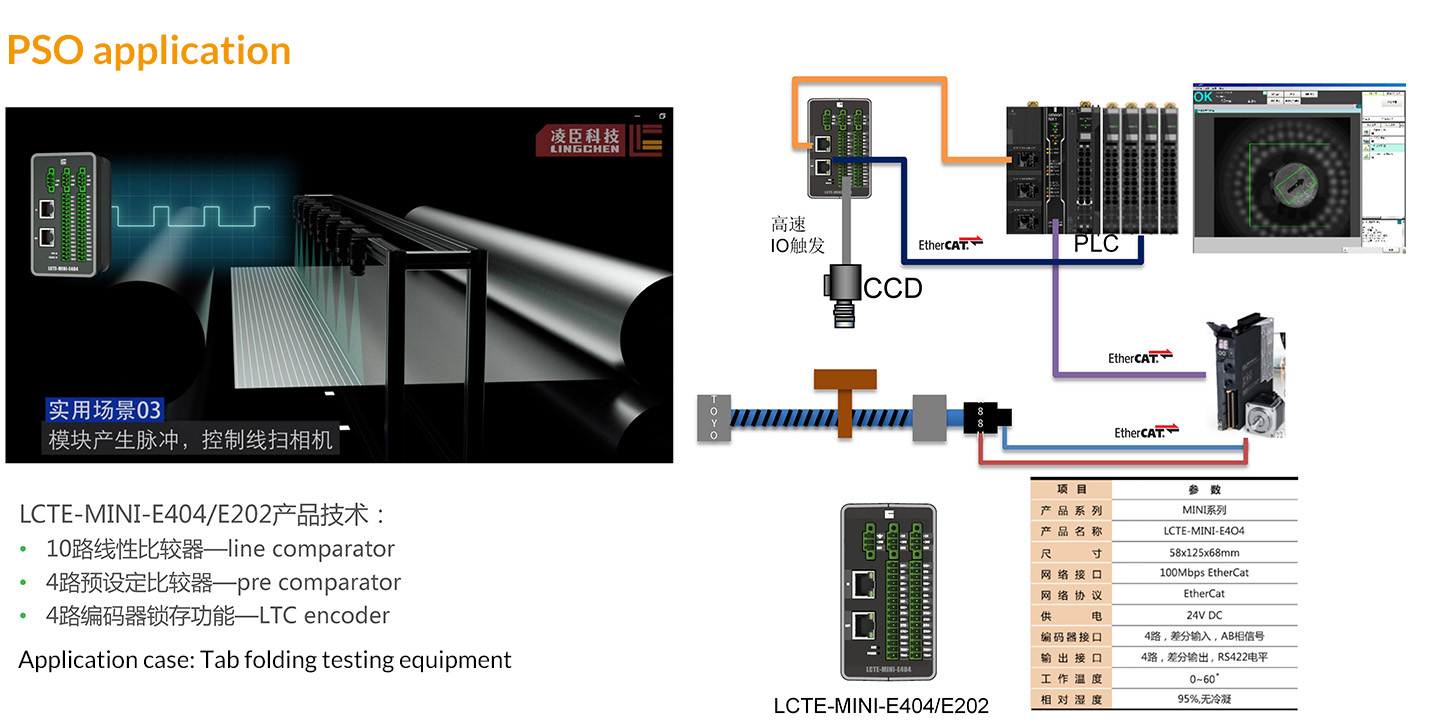

■ PSO function

During the movement, a single trigger output can be achieved to trigger the camera to take photos with precise position points;

It supports single-axis position comparison triggering and two-dimensional position comparison triggering;

Equipped with multiple sets of comparators, it can take photos with multiple cameras;

■ Position latch function

Support high-speed signal inputs and the real-time position latching of each axis during motion, be able to record the posture of each axis when triggered, and perform single or multiple latching operations;

■ Multi-axis continuous trajectory

Support linear interpolation, circular interpolation, and helical interpolation

Specification parameters

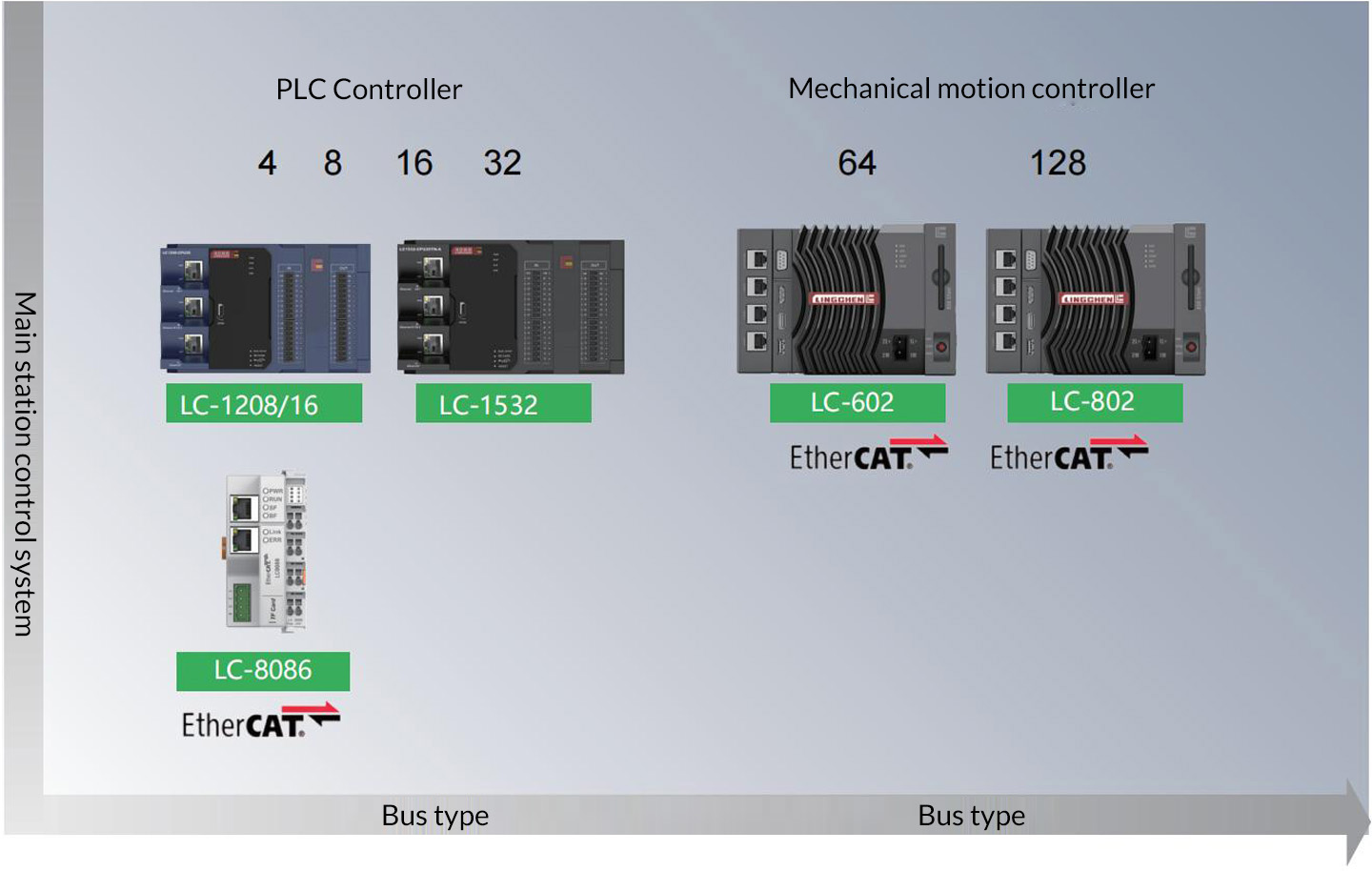

LC 8/16/32-axis motion controller

Item		Specifications
	Number of control axes	32-axis (8/16/32), virtual axis
Output form	Communication specifications	EtherCAT (CoE, FoE)
Output form	Communication cycle	0.5/1/2/4 ms
	Support servo drive CIA402	EtherCAT CoE-supported servo drives
	Control cycle	0.5/1/2/4 ms
	Control unit	pulse, mm, inch, degree
Motion program	Memory usage	All 10 Mbyte
Motion program	Languages	ST, LD(FBD), SFC, etc.
Position range		±LREAL, 0
Speed range		±LREAL, 0
Control mode		PTP, interpolation, speed, position, torque control
Acceleration/deceleration processing		Trapezoidal, S-shaped
Acceleration/deceleration range		+LREAL, 0
Manual operation		JOG
Variable speed		Speed change (absolute value/percentage)
Absolute position system		Usable (when using servo drives with absolute value encoders)
CAM settings		100 points−32,768 points (Up to 32 CAM tables, variable according to the number of points)
Maximum transmission distance		100m
