Machining center

JIRFINE machining center V-8B




Contact Us

021-5456 1588

Online Message

product details

Features


1. High-rigidity body design with high-rigidity extended slider, which greatly improves cutting performance

2. A herringbone structure design with the "golden ratio", to strengthen the torque resistance and bending rigidity

3. The best choice for batch processing, widely used in new energy, automation, hardware, auto parts, aviation, medical and other industries

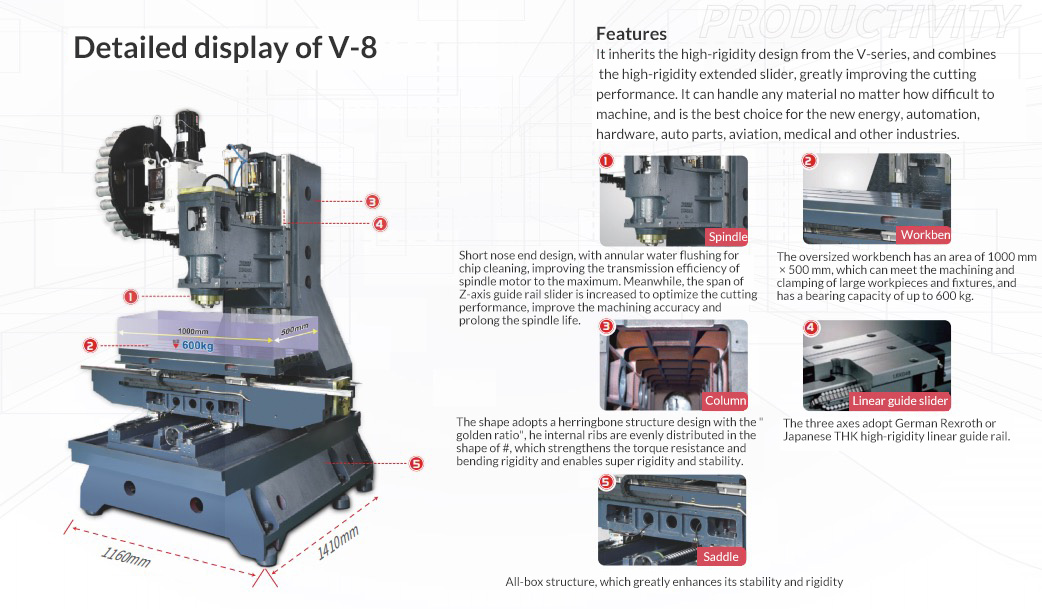

Detailed display of V-8.jpg



Characteristic curve of spindle motor






Application fields

Molds, aviation, automobile manufacturing, medical, hardware, communication, etc.


加工中心 应用领域 英文 (2).jpg

Cases

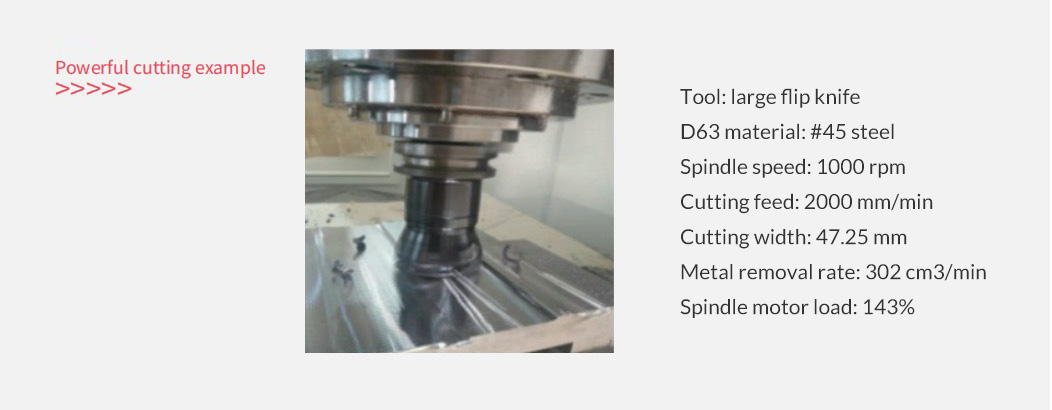

High-rigidity design inherited from V series, with high-rigidity internal circulation oil-cooled spindle, which greatly improves the cutting performance. Can handle any material no matter how difficult to machine, and the best choice for molds, hardware, auto parts, aviation, medical equipment, etc.



Mechanical specifications


NameItemUnitSpecifications
TravelX-axis travelmm820
Y-axis travelmm550
Z-axis travelmm550
Distance from spindle probe nose to workbenchmm120 - 670
Distance from spindle center to Z-axis shieldmm/
WorkbenchWorkbench dimensionmm1000x500
T-slot (size×number×spacing)mm18x5x80
Max. load capacity of workbenchkg600
SpindleRotational speedrpm12000
Spindle taper#BT40
Drive mode#Direct drive
FeedThree-axis cutting feedmm/min1-10000
Three-axis rapid feedm/min48/48/48
PrecisionPositioning precisionmm0.008/0.006/0.006
Repetitive positioning precisionmm0.005/0.004/0.004
Tool change systemNumber of toolspcs24
Max. tool weightkg8
Max. tool lengthmm300
Tool diameter (fully loaded tool/empty neighbor tool)mm80/150
Tool magazine type#Disk-type

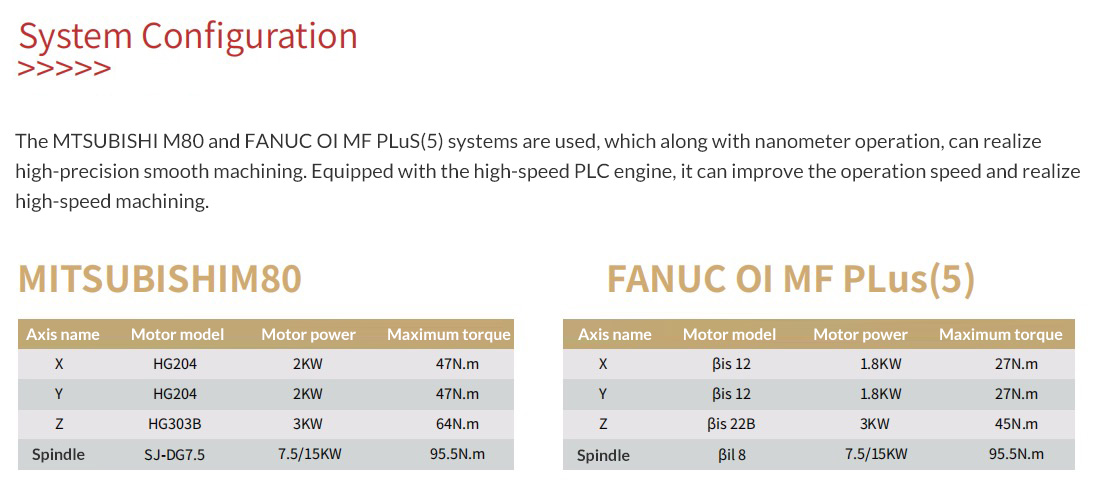

CNCControl system#FANUC 0I-MF
Spindle motor powerkw7.5/15
Three-axis motor powerkw1.8/1.8/3.0
OthersRequired air pressurekgf/cm3≥6
Electricity demandKVA20
Overall dimensions (L×W×H)mm2400x2700x2830
