KK module

The KK type single-axis robot is mainly designed in a modular manner to integrate ball screw with linear guide rail, thus shall be featured by high precision, fast installation and selection, high rigidity, compact size, and space-saving. By using the high-precision ball screw as the transmission mechanism and the optimal U-shaped guide rail as the guide mechanism, the precision and rigidity requirements are met.

Contact Us

021-5456 1588

product details

Product Introduction

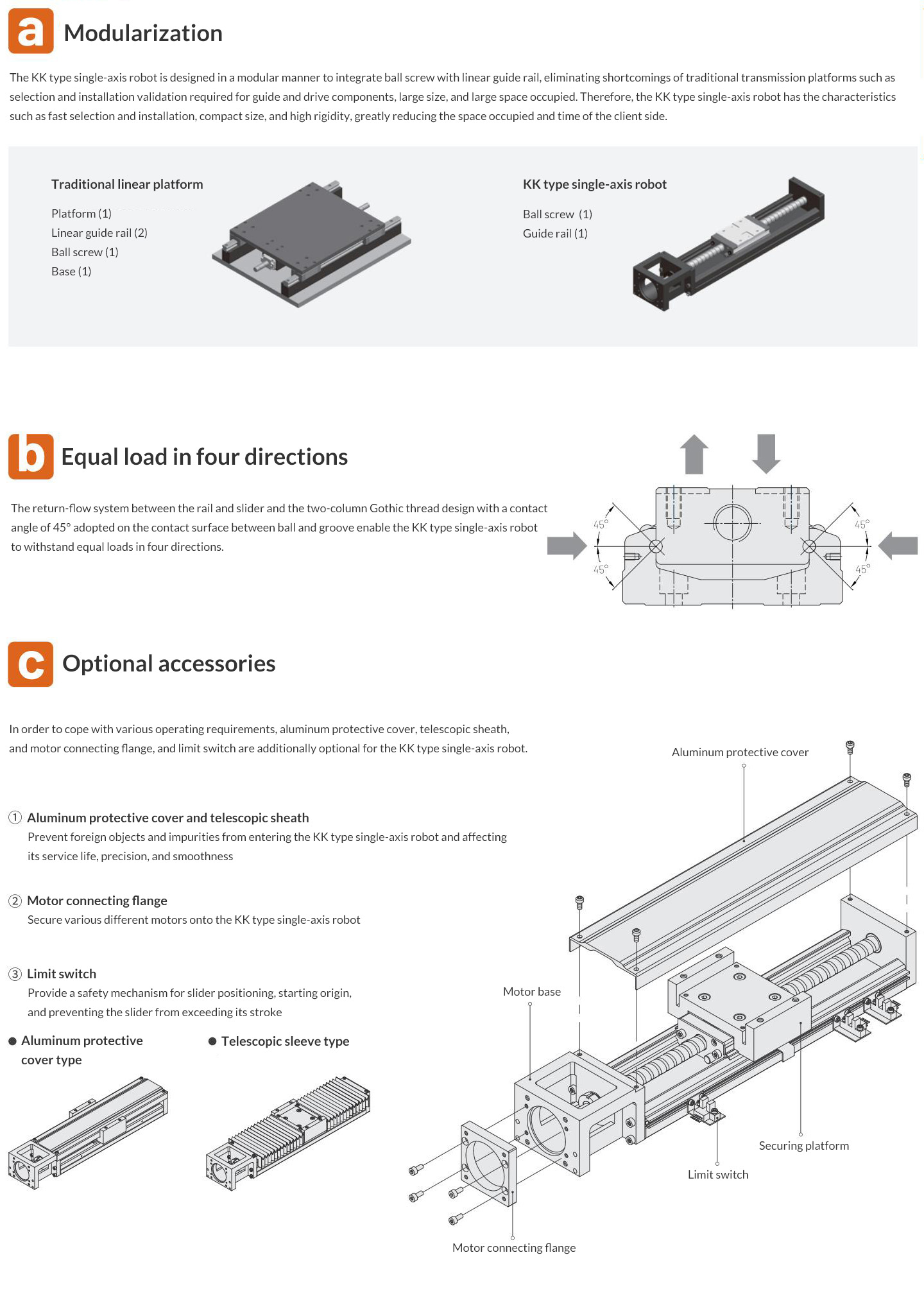

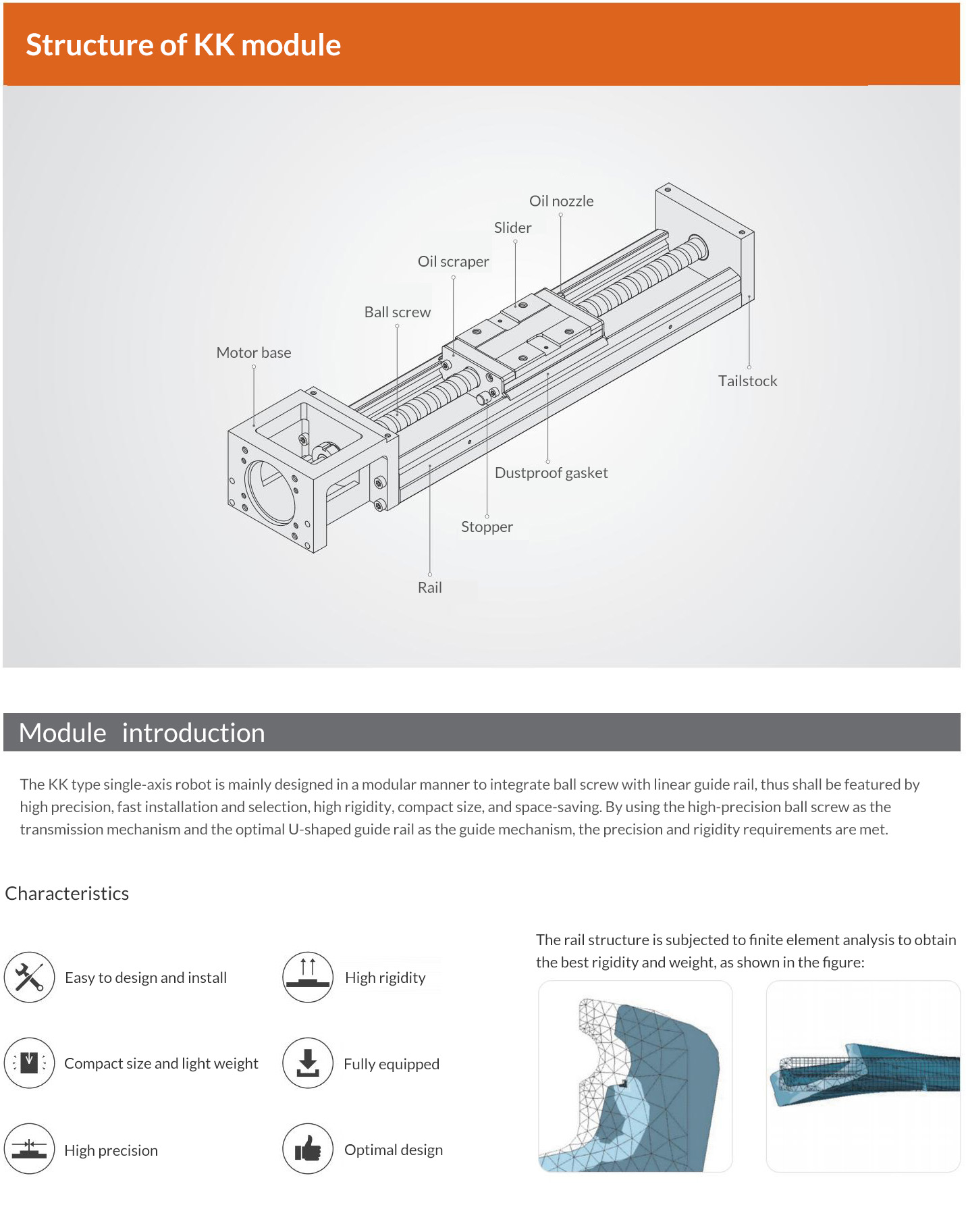

Interior structure

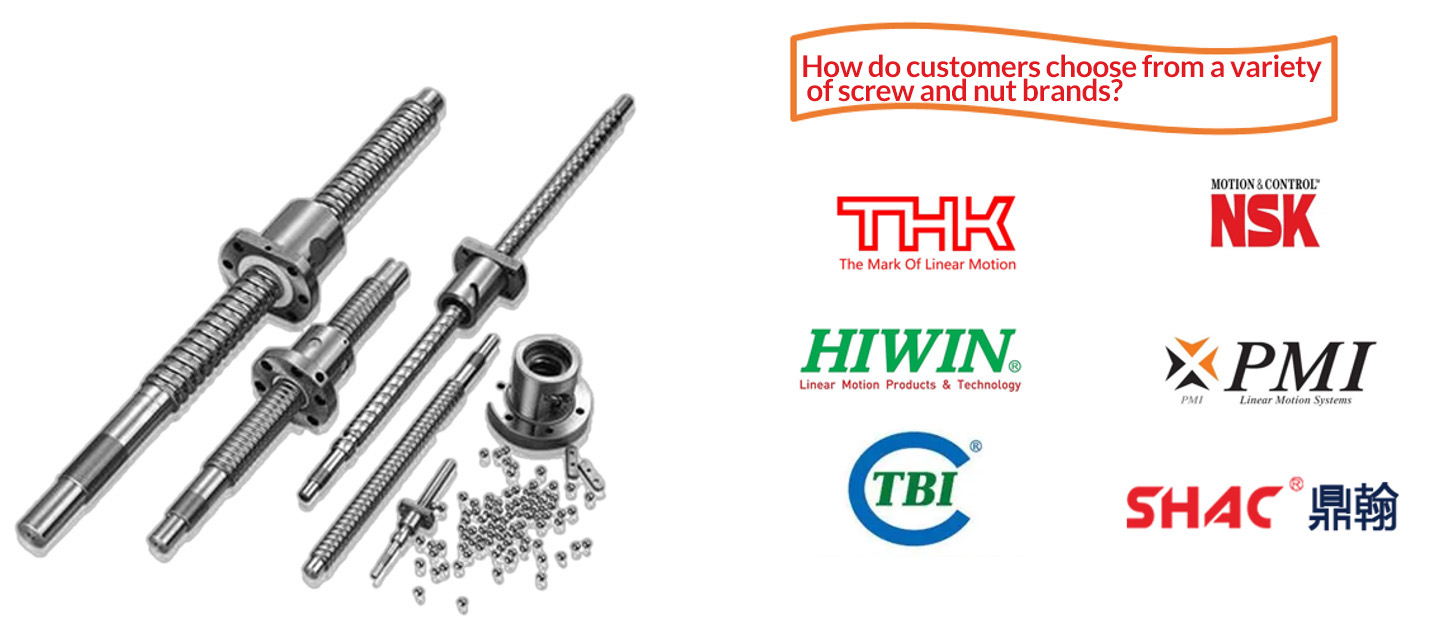

1. The consistency of module quality cannot be guaranteed solely by specifying brands of screw and sliding rail;

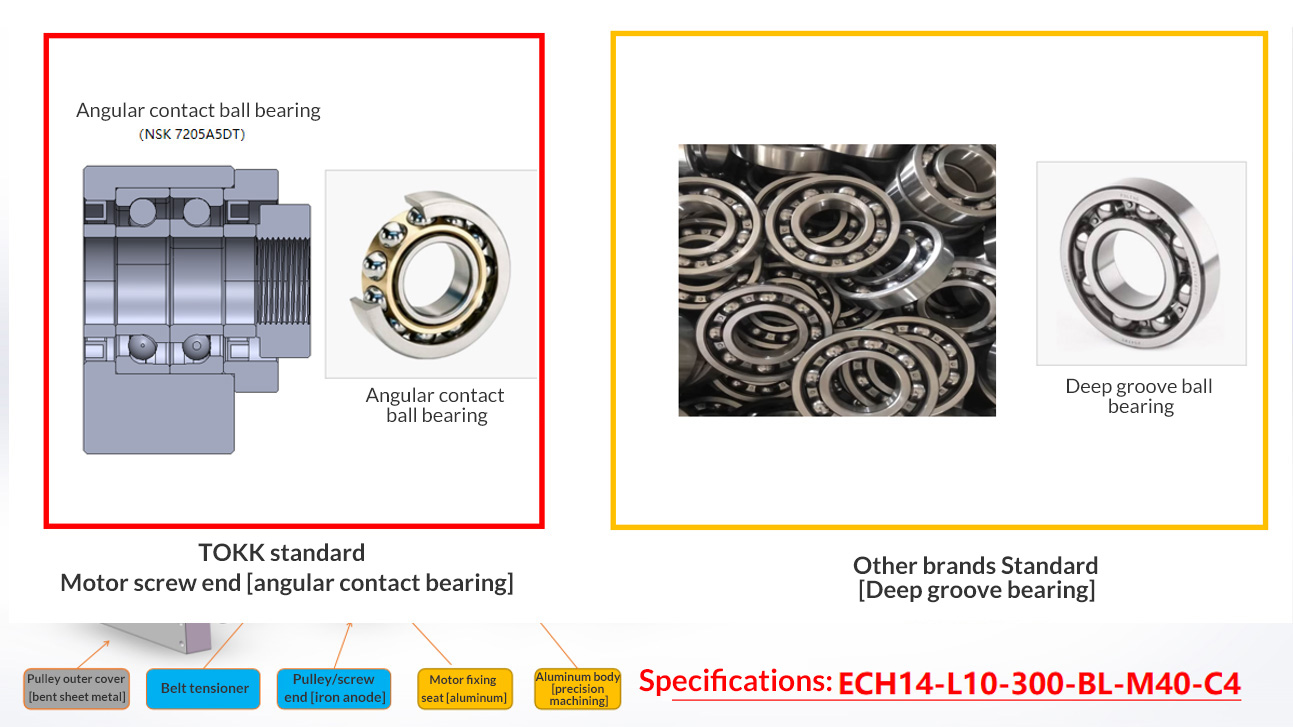

2. There are significant differences in body materials, precision machining requirements, and high-speed bearings;

3. Even if a screw brand is specified, customers shall know that even products from the same brand may have differences and there may be situations where counterfeit goods are used;

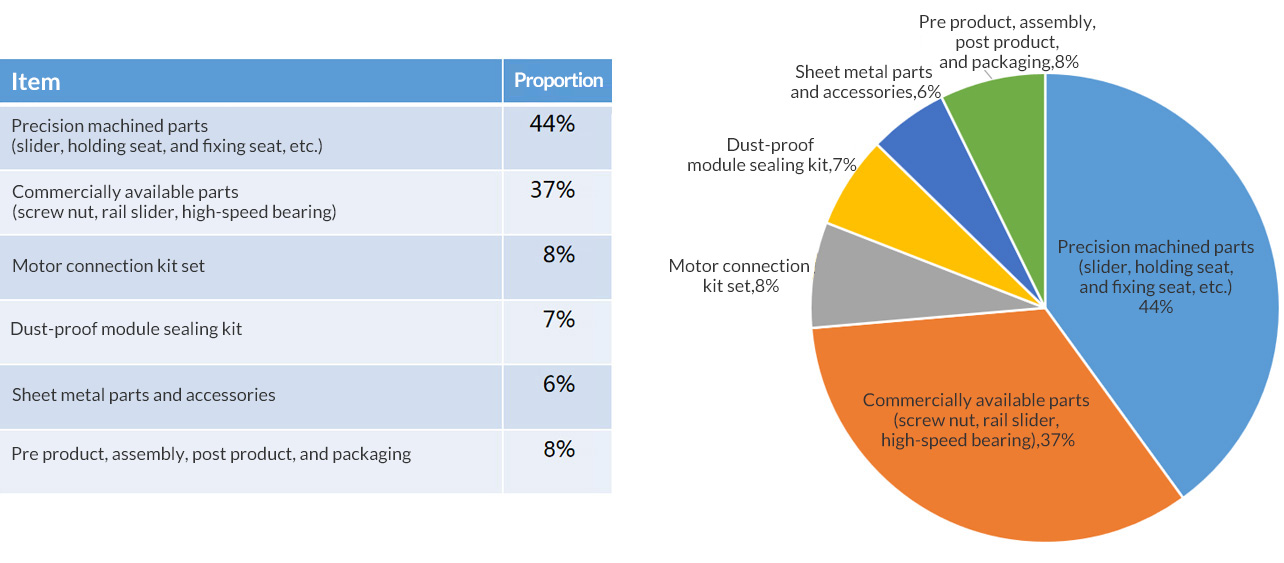

4. Price competition is inevitable in market development, but competition based on consistent quality of key components is more cost-effective;



Differences in screw [end machining]



Many customers focus their attention on screw brands. In fact, the products manufactured may be unqualified if machining is not controlled in a precise manner even though high-quality materials are available!

Moreover, many module factories themselves do not involve in end machining of screws, because of which the quality cannot be guaranteed, let alone the problem on fitting of nuts and balls!

The precision validation before screw machining, control of deformation during machining, rebound deformation after machining, and the repeatability precision after module installation are all indispensable!

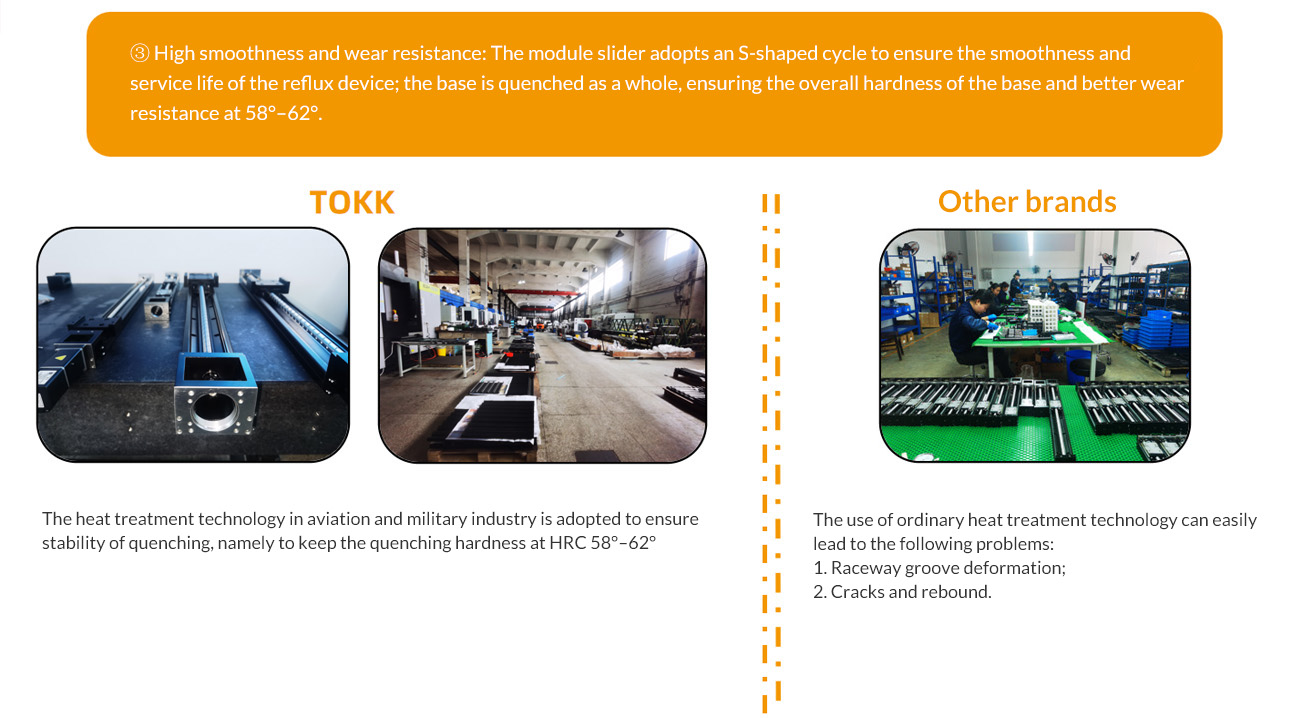

Technical comparison




Product application

The KK type single-axis robot product has a wide range of applications, and is applicable for general automatic equipment as described below:



Applicable industries

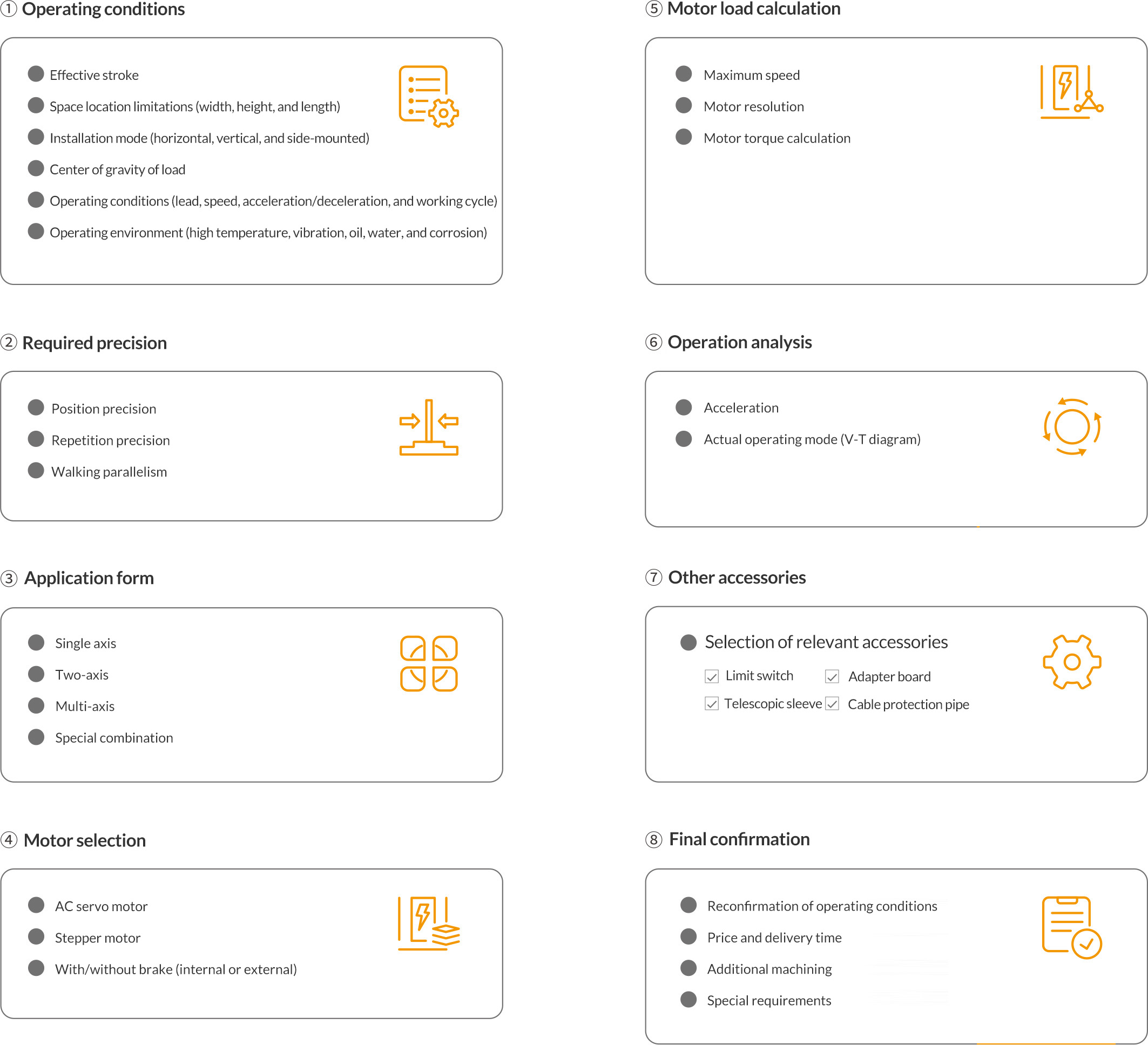

Selection steps


Our strengths

Our strengths Linear motor.jpg
