It has high quality and precise temperature control for stable temperature regulation
Performance features:
● High flow rate, precise PID control
● Utilizing high-pressure, high-flow pumps, and PID control to realize precise and efficient temperature regulation Low noise during operation, having no impact on the work environment
● Set values and digital displays are located on the control panel for easy operation
Contact Us

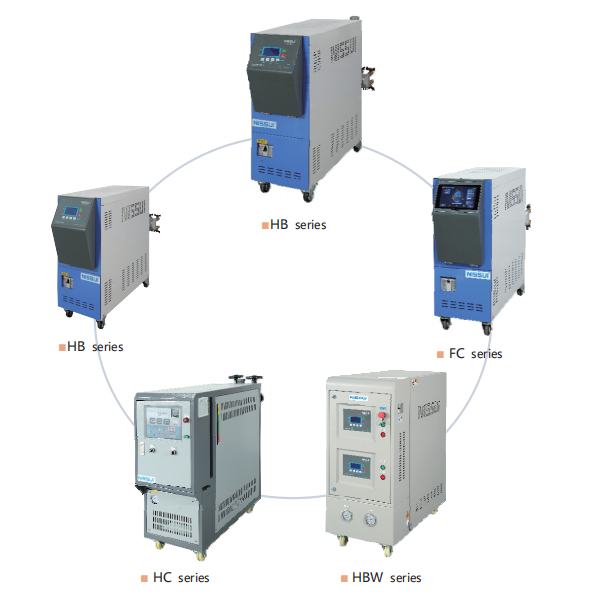

Choose the model based on the media used, operating temperature, and flow rate
■ Overview of mold temperature controller selection
Heat transfer medium (water)
Types | Negative pressure type | high pressure type | High temperature/High pressure type | |||
Maximum temperature | 60℃ | 120℃ | 140℃ | 160℃ | 180℃ | |
| 21 | FC-31 |
|
|
|
|
Maximum flow rate | 25 |
| HB-03-25-120 |
|
|
|
45 |
|
|
|
| HB-06-60-180 | |
60 |
| HB-06-60-120 | HB-06-60-140 | HB-06-60-160 | HB-09-60-180 | |
HB-09-60-120 | HB-09-60-140 | HB-09-60-160 | HB-12-60-180 | |||
HB-12-60-120 | HB-12-60-140 | HB-12-60-160 |
| |||
80 | FC-32 |
|
|
|
| |
90 |
| HB-09-60-120 | HB-12-90-140 |
| HB-12-90-180 | |
HB-12-90-120 | ||||||
| 100 |
|
|
| HB-12-100-160 |
|
| 110 |
|
|
| HB-15-110-160 |
|
Large flow type | 160 |
| HB-12-160-120 |
|
|
|
230 |
| HB-18-230-120 |
|
|
| |
260 |
| HB-24-260-120 |
|
|
| |
HB-36-260-120 | ||||||
HB-48-260-120 |
■ Compatible injection molding machine (for reference)
Heat transfer medium (water)
Maximum temperature (max.) | 120℃ | 140℃ | 160℃ | 180℃ | |
Clamping force of injection molding machine | ~50tf | HB-03-25-120 | HB-06-60-140 | HB-06-60-160 | HB-06-45-180 |
~75tf | HB-06-60-120 | HB-06-60-140 | HB-06-60-160 | HB-09-60-180 | |
HB-09-60-120 | HB-09-60-140 | HB-09-60-160 | HB-12-60-180 | ||
HB-12-60-120 | HB-12-60-140 |
|
| ||
~200tf | HB-12-60-120 | HB-12-60-140 | HB-09-60-160 | HB-12-90-180 | |
HB-12-90-140 | HB-12-100-160 | ||||
~400tf | HB-12-60-120 | HB-12-90-140 | HB-12-100-160 | HB-15-90-180 | |
HB-15-110-160 | |||||
~600tf | HB-18-230-120 |
|
|
| |
~1200tf | HB-24-230-120 |
|
|
| |
HB-36-260-120 | |||||
HB-48-260-120 |
■ Overview of mold temperature controller selection
Heat transfer medium (oil)
Types | High temperature type | |||
Maximum temperature | 160℃ | 200℃ | 350℃ | |
| 45 |
| HC-06-45-200 | HC-18-45-350 |
HC-09-45-200 | ||||
60 | HC-06-60-160 |
|
| |
HC-09-60-160 | ||||
90 | HC-12-90-160 | HC-12-90-200 |
| |
100 |
|
| HC-36-100-350 | |
180 |
| HC-24-180-200 |
| |
230 | HC-24-230-160 |
|
| |
260 | HC-36-260-160 | HC-36-260-200 |
■ Compatible injection molding machine (for reference)
Heat transfer medium (oil)
Maximum temperature(Max) | 160℃ | 200℃ | 350℃ | |
Clamping force of injection molding machine | ~75tf | HC-06-60-160 | HC-06-45-200 | HC-18-45-350 |
~200tf | HC-09-60-160 | HC-09-45-200 | HC-36-100-350 | |
HC-12-90-160 | HC-12-90-200 | |||
~400tf | HC-12-90-160 | HC-12-90-200 |
| |
Large flow type |
| HC-24-230-160 | HC-24-180-200 |
|
HC-36-260-160 | HC-36-260-200 | |||
Note: Due to differences in mold structure and dimensions, the above selection tables are for reference only. |
Standard specifications | HB-31-40-120 | HB-32-40/60-120 | HB-33-60/90-120 | ||
Heat transfer medium | Water | ||||
Temperature control range | ℃ | Temperature control range: +10−95°C(±1°C) | |||
Cooling method | Direct cooling | ||||
Heater | Kw | 3.0 | 6.0 | 9.0 | |
Pump | Water pump power | kw | 0.37 | 0.37 | 0.75 |
Maximum pressure | MPa | 0.35 | 0.35 | 0.35 | |
Maximum flow rate | L/min | 42 | 42 | 55 | |
Controller | Temperature control | PID controller | |||
Temperature display | Digital display | ||||
Alarm indication | Pump overload, water supply pressure, sensor malfunction, reverse phase, setpoint temperature | ||||
Equipment | Cooling water inlet/outlet (standard size) | Rc3/8 | Rc3/8 | Rc3/8 | |
Hot water inlet/outlet (standard size) / media inlet & outlet | Rc3/8*2 | Rc3/8*4 | Rc3/8*4 | ||
Connectors | Rc3/8 | Rc3/8 | Rc3/8 | ||
Storage tank | L | 1.2 | 2.0 | 2.7 | |
Power supply | Voltage | 200/220V 50/60Hz 3φ | |||
Power plug | 3P20A Type grounding | 3P30A Type grounding | Excluding 40A | ||
Overall dimensions(W*D*H) | mm | 235*600*620 | 235*600*620 | 235*600*670 | |
Weight | kg | 55 | 60 | 75 |
Standard specifications | HB-34-60/90-120 | HB-35-90/120-120 | HB-36-120/200-120 | |||
Heat transfer medium | Water | |||||
Temperature range | ℃ | Temperature range+10~95℃(±1℃) | ||||
Cooling method | Drect cooling | |||||
Heater | Kw | 3.0 | 6.0 | 9.0 | ||
Pump | Water pump power | kw | 0.37 | 0.37 | 0.75 | |
Maximum pressure | MPa | 0.35 | 0.35 | 0.35 | ||
Maximum flow rate | L/min | 42 | 42 | 55 | ||
Controller | Temperature control | Pid controller | ||||
Temperature display | Digital display | |||||
Alarm indication | Pump overload, water supply pressure, sensor malfunction, reverse phase, setpoint temperature | |||||
Equipment | Cooling water inlet/outlet (standard size) | Rc3/8 | Rc3/8 | Rc3/8 | ||
Hot water inlet/outlet (standard size) / media inlet & outlet | Rc3/8*2 | Rc3/8*4 | Rc3/8*4 | |||
Connectors | Rc3/8 | Rc3/8 | Rc3/8 | |||
Storage tank | L | 1.2 | 2.0 | 2.7 | ||
Power supply | Voltage |
| 200/220V 50/60Hz 3φ | |||
Power plug |
| 3P20A type grounding | 3P30A type grounding | Excluding 40A | ||
Overall dimensions(W*D*H) | mm | 235*600*620 | 235*600*620 | 235*600*670 | ||
Weight |
| kg | 55 | 60 | 75 |
