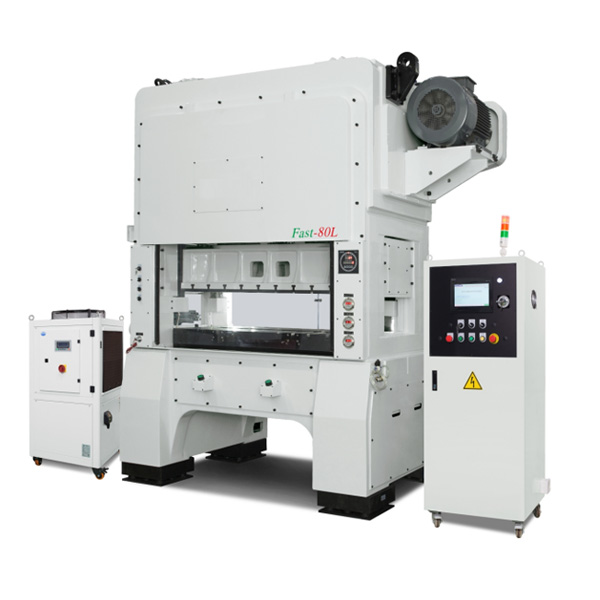

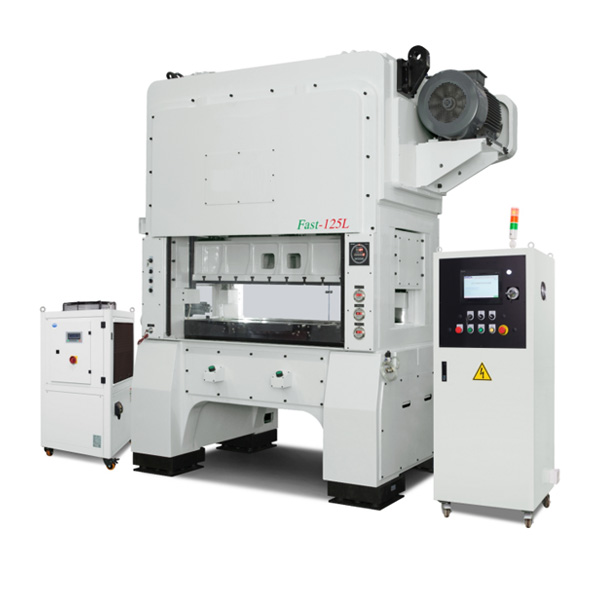

High speed punch press_TIREEY_Shanghai Meeyear Intelligent Technology Co., Ltd

product details

Product Introduction

For example: 30T

Processing cases


Main features

HUMANIZED TOUCH SCREEN OPERATING SYSTEM

一、MOTION MONITORING

1.Punch driving automatic detection (motion detector), encoder (decoder) abnormality, clutch brake action abnormality and other functions,To ensure the safe operation of the press.

2.The main motor operates normally (forward rotation,reverse rotation and SPM (punch stroke number), which are displayed on the HMI screen and can be used for specific sectionsSpeed setting for special functions.

3.Machine abnormal messages can be displayed by HMI, and there are instructions for troubleshooting.

二、STROKE COUNTER

1.All the travel counting functions required by the customer have been included. The machine has a travel counter, a preset counter,a batch counter, a maintenance counter, a life counter, etc.

2.The setting and status of the counter are set and displayed on the HMI screen.

三、ELECTRONIC ANGLE CONTROL

1.The electronic cam on / off switch is set and monitored by the electronic angle controller, which is easy to operate.

2.Electronic cam on / off switch, prepared for 6 connections, which can be expanded without machine change.

3.Full automatic brake positioning correction can avoid the loss of accurate fixed-point stop due to wear,angle change or travel speed (SPM) change.

四、COORDINATION OF PERIPHERAL EQUIPMENT

1.The two contacts B1 and B2 can be sent to cam by mistake to set the on and off detection fields, and the other contacts a and B can be changed as needed.

2.Provide RS-485 optional function,which can be used for external remote monitoring and management.

3.Clamp feeder.

Specification parameters

Model	Fast-30T
PressureCapacity	300
Stroke	16mm	20mm	25mm	30mm
S.P.M	180-1250	180-1150	180-1050	180-900
DieHeight	190-240mm
AdjustmentAmount	50mm
SliderSize	600*300mm
BolsterArea	600*400mm
Thickness	90mm
Blank-holdingHole	400(350)*60mm
MainMotor	11KW
TotalWeight	6500kg
CoatingColor	Standard
CirculatorySystem	Forced lubrication+oil cooling machine(Forefulautomationoil coller)
SpeedControlSystem	Lnverter
Clutch&Brake	Air和friction
AutoTopStop	Standard
VibrationSystem	Spring pad

Product testing and certification

Application scenarios

Widely used

Stamping machine tools are widely used in industries such as aerospace, shipbuilding, automotive, electrical and electronic, instrumentation, medical machinery, and hardware products

应用领域 YINGWEN.jpg

Partners

Partial partners

After-sale service

Efficient,considerate pre-sales, on-sales and after-sales service

Pre-sales service

Advanced process engineers assist customers in punching product analysis and production process

Senior mechanical engineer tailors punch presses to customers' punching products

The high quality stamping team assists the customer in the pre-production ofpunching products until mass production

Sales service

Professional punching engineers are responsible for mechanical transportation, installation and commissioning

All training in explaining the parameters and functions will be carried out on site.

Provide early mechanical knowledge and process training for customers

After-sales service

The all-weather senior engineer will be ready to serve you and solve your problems Regular return visit work to timely feedback customer's mold-cutting equipment usage

Check.maintain and preserve the punching equipment regularly to ensure the over-normal use of the punching equipment
