Chiller

Performance features

■ Equipped with compressor high and low pressure protection, internal overheating protection, and fault warning.

■ Equipped with low water level alarm device and low water temperature anti-icing alarm

■ Using imported compressors from Europe, America, and Japan

■ The welding joints of the refrigeration system adopt oxygen-free welding method to reduce oxides and make the surface smooth

■ Throttling components are from Danfoss (Denmark) and AccuMedical (USA)

■ Using high-efficiency heat exchangers of stainless steel plate, coil, shell tube, and fin types

■ Electrical components are from OMRON, FUJI, TE, LG, MOELLER, SCHEIDER

■ Equipped with high-efficiency evaporator and condenser, which can save energy by more than 30%


Contact Us

021-5456 1588

product details

Standard specifications

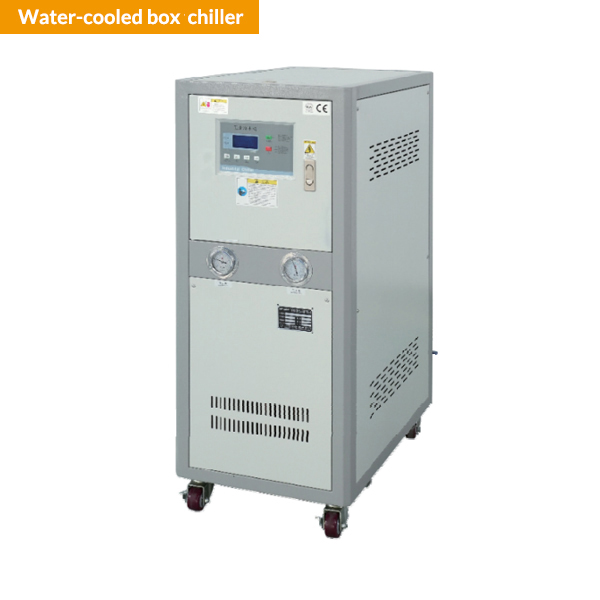

Water-cooled box  chiller


Standard Specification 1

Model

RS-03WS

RS-04WS

RS-05WS

RS-06WS

RS-08WS

RS-010WS

RS-012WS

RS-015WS

Cooling power

Kw(50Hz)

9.34

12.4

16.1

19

24.8

32.2

38

49.1

Cooling capacity

Kca/h

8032

10664

13846

16340

21328

27370

32680

42226

Input power

kw

3.2

3.68

4.21

4.51

7.36

8.42

9.02

11.56

Maximum operating current

A

6.07

6.75

9.8

10.5

13.5

19.6

21

24

Power supply

3N-380V/415V50Hz

Coolant/Refrigerant

Name

R22

Refrigerant charge

(kg)

1.7

2.2

2.8

3.4

2.2*2

2.8*2

3.4*2

4.2*2

Control method

Capillary/External balanced thermal expansion valve

Compressor

Type

Totally enclosed turbine type or piston type completely enclosed type

Power

2.81

3.31

3.46

3.76

3.31*2

3.46*2

3.76*2

3.46+6.6

Cooling water

Water volume

m³/h

2.1

3.2

4.1

4.8

6.4

8.2

9.6

11.9

Inlet and outlet pipe diameter

G1’

G1’

G1’

G1’

G1-1/2’

G2’

G2’

G2’

Chilled water

Power

m³/h

1.65

2.14

2.8

3.3

4.3

5.6

6.6

8.5

Pressure

0.038

0.038

0.065

0.08

0.188

0.188

0.188

0.285

Inlet and outlet pipe diameter

G3/4”

G3/4”

G1”

G1”

G1-1/2”

G2”

G2”

G2”

Water pump

Power

kw

0.375

0.375

0.75

0.75

0.75

1.5

1.5

1.5

Pressure

Kpa

242

242

290

290

290

205

205

205

Overall dimensions

L*W*H

Length(L)

mm

830

830

1080

1080

1300

1300

1300

1680

Wide(W)

mm

460

460

580

580

610

610

710

775

High(H)

mm

1020

1020

1230

1230

1445

1445

1445

1480

Weight

KG

120

140

150

200

210

290

310

400



Standard Specification 2ModelRS-20WDRS-25WDRS-30WTRS-36WTRS-40WFRS-50WFRS-60WF

Cooling power

Kw(50Hz)667699114132152198

Cooling capacit

Kca/h56760653608514098040113520130720170280

Input power

kw15.41723.62630.233.539.6

Maximum operating curren

A29.631.845.648.658.362.376.2

Power suppl

3N-380V/415V 50Hz

Coolant/Refrigeran

NameR22

Refrigerant charg

(kg)5*26.3*25*36.2*35*46.2*45*6

Control method

Capillary/External balanced thermal expansion valv

CompressorType

Totally enclosed turbine type or piston type completely enclosed type

Power6.6*27.4*26.6*37.4*36.6*47.4*46.6*

Cooling water

Water volume

m³/h15.918.221.3227.331.736.447.5

Inlet and outlet pipe diameter

G2’G2G2-1/2’G3'G3'G3'G3'

Chilled water

Water volume

m³/h11.313.117.0619.722.826.234

Water tank

0.280.40.40.40.550.3_

Inlet and outlet pipe diameter

in/outG2-1/2”G2-1/2”G2-1/2”G3”G3”G3”G3”

Water pum

Powerkw2.22.23.753.753.753.75-

Pressure

Kpa220220250250250250250

Overall dimensions

L*W*H

Length(L)mm1680188022002200240024002400
Wide(W)mm77591410001000100010001150
High(H)mm1480165016501650165016501650
WeightKG44058069076090010001000

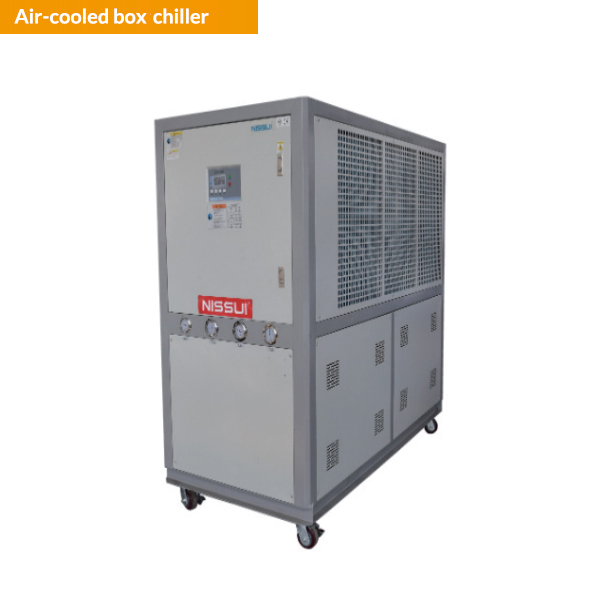

Air-cooled box chiller


Standard Specification 1

Model

RS-1/2AS

RS-01AS

RS-02AS

RS-03AS

RS-04AS

RS-05AS

RS-06AS

RS-08AD

Cooling power

Kw(50Hz)

1.53

2.94

5.67

8.86

10.9

14.5

17.2

21.8

Cooling capacity

Kca/h

1316

2528

4872

7620

9374

12470

14792

18748

Input power

kw

0.68

1.31

2.6

3.45

4.22

4.97

5.74

8.6

Maximum operating current

1N-220V/50Hz

3N-380V/415V50Hz

Coolant/Refrigerant

Name

R22

Refrigerant charge

(kg)

0.6

0.8

1.6

2

2.4

3.3

3.9

2.4*2

Control method

Capillary/External balanced thermal expansion valve

Compressor

Type

Fully enclosed rotary/fully enclosed rotary

Fully enclosed turbo or piston type

Power

0.55

0.75

1.5

2.2

3

4.22

4.68

3*2

Cooling air volume

m³/h

800

1000

2000

3000

4000

5000

6000

8000

Chilled water

Water volume

m³/h

0.26

0.51

0.97

1.53

1.87

2.4

2.91

3.75

Water tank

0.022

0.028

0.038

0.06

0.06

0.07

0.11

0.11

Inlet and outlet pipe diameter

in/out

G1/2”

G1/2”

G3/4”

G3/4”

G3/4”

G1”

G1”

G1-1/2”

Water pump

Power

kw

0.375

0.375

0.375

0.375

0.375

0.75

0.75

0.75

Pressure

Kpa

180

180

250

242

242

290

290

290

Overall dimensions

L*W*H

Length(L)

mm

600

600

820

945

945

1035

1200

1470

Wide(W)

mm

400

400

460

550

550

610

650

710

High(H)

mm

940

940

1170

1370

1370

1385

1480

1700

Weight

KG

45

60

100

130

160

190

220

270



Standard Specification 2

Model

RS-10AD

RS-12AD

RS-15AD

RS-20AD

RS-25AD

RS-30AD

RS-40AD

RS-50AD

RS-60AD

Cooling power

Kw
   (50Hz)

29

34.4

44.5

60

76

90

120

152

180

Cooling capacity

Kca/h

24940

29584

38270

51600

65360

77400

103200

130720

154800

Input power

kw

11

12

15.5

20

22.1

31.75

39.35

48.7

60.7

Maximum operating current

3N-380V/415V50Hz

Coolant/Refrigerant

Name

R22



Refrigerant charge

(kg)

3.3*2

3.9*2

3.3+6.6

6.6*2

7.8*2

6.6*3

6.6*4

7.8*4

6.6*6

Control method

Capillary/External balanced thermal expansion valve



Compressor

Type

Totally enclosed turbine type or piston type completely enclosed type

4.22*2

4.68*2

8.2+4.2

8.1*2

9.15*2

8.1*3

8.1*4

9.15*4

8.186

Cooling air volume

m³/h

10000

12000

15000

20000

25000

30000

40000

48000

66000

Chilled water

Water volume

m³/h

4.82

5.81

7.6

10.16

12.34

15

19.53

23.3

30.52

Water tank

0.188

0.188

0.285

0.285

0.405

0.405

0.61

0.61

0.7

Inlet and outlet pipe diameter

in/out

G2”

G2”

G2”

G2”

G2-1/2”

G2-1/2”

G3”

G3”

G3-1/2

Water pump

Power

kw

1.5

1.5

1.5

2.2

2.2

4

4

4

4

Pressure

Kpa

205

205

205

220

220

250

250

250

250

Overall dimensions

L*W*H

Length(L)

mm

1470

1600

1680

1955

2080

2400

2250

2700

3400

wide(W)

mm

710

800

890

940

1000

1100

1550

1620

1800

High(H)

mm

1435

1600

1600

1600

1800

1800

1820

1850

1850

Weight

KG

350

370

520

590

790

880

1100

1280

1420
