Electrical discharge machining

DMSPK DR450H

Highlights:

● Pull-down oil tank door

● On-line remote control

● Configured with WINDOWS system

● T-shaped structure of the machine body

● Space-saving compact design

● Elegant appearance

Contact Us

021-5456 1588

product details

Features

1. A T-shaped structure of the machine body, which has a higher positioning and repeated positioning accuracy, and can maintain the accuracy for a longer time;

2. A positioning accuracy of up to 7 μm, and a repeated positioning accuracy of up to 4 μm;

3. Pull-down oil tank door, allowing a more compact structure and occupying smaller space;

4. Maximum machining efficiency of copper electrode: greater than 500 mm3/min; maximum machining efficiency of graphite electrode: greater than 400 mm3/min;

5. Minimum electrode loss from machining: less than 0.1%, optimal surface roughness Ra ≤ 0.08.

Scope of application

Suitable for machining of precision plugs and connectors (precision parts sector), machining of IC packaging molds (microchip sector), machining of molds for mobile phone shells and luxury watches (luxury goods and electronic equipment sectors), machining of injection molds for various daily necessities and cosmetics (daily necessities and cosmetics sectors) and molds for syringes of the pharmaceutical sector (pharmaceutical sector)


放电机 应用领域  EDM.jpg

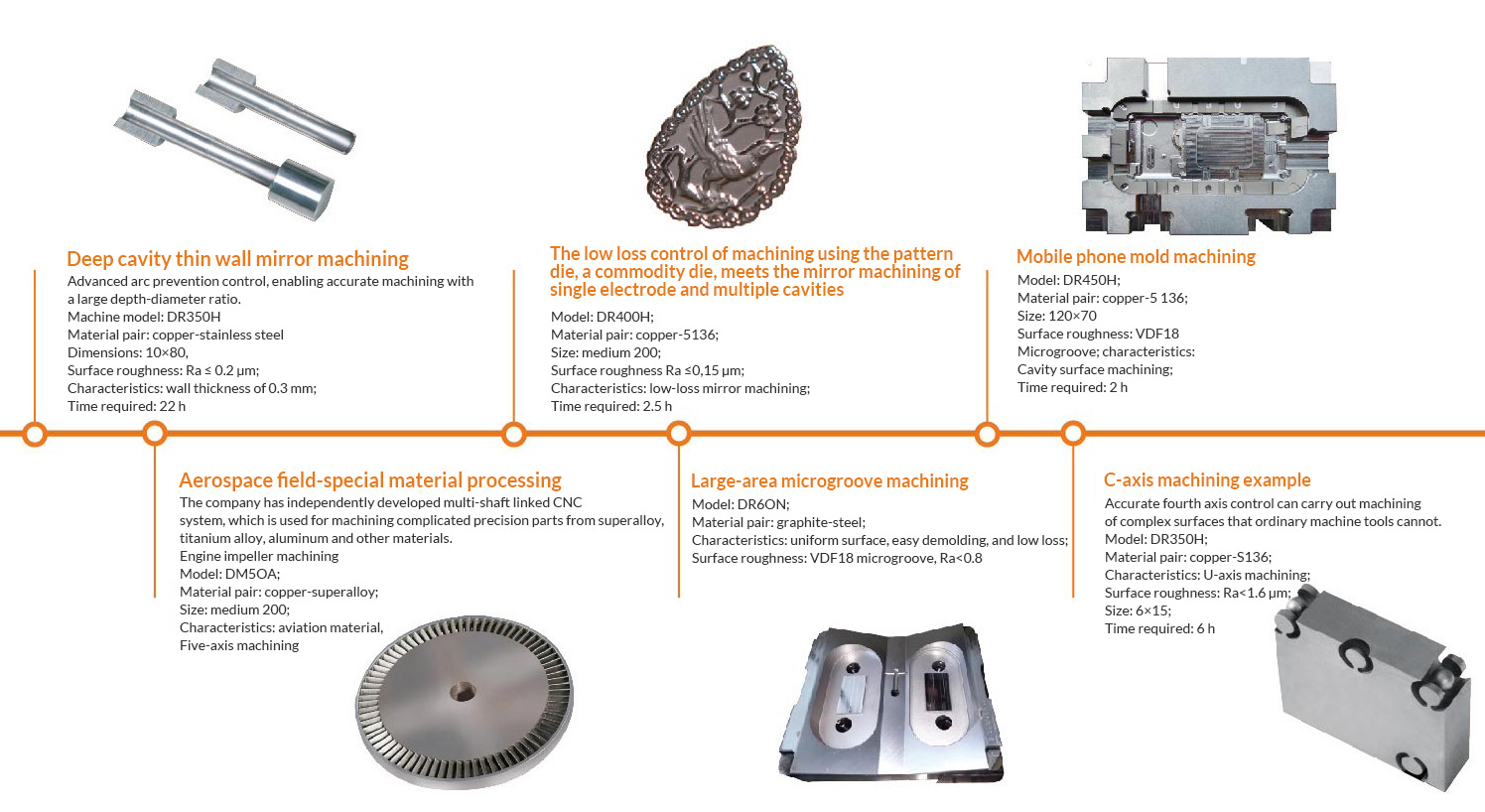

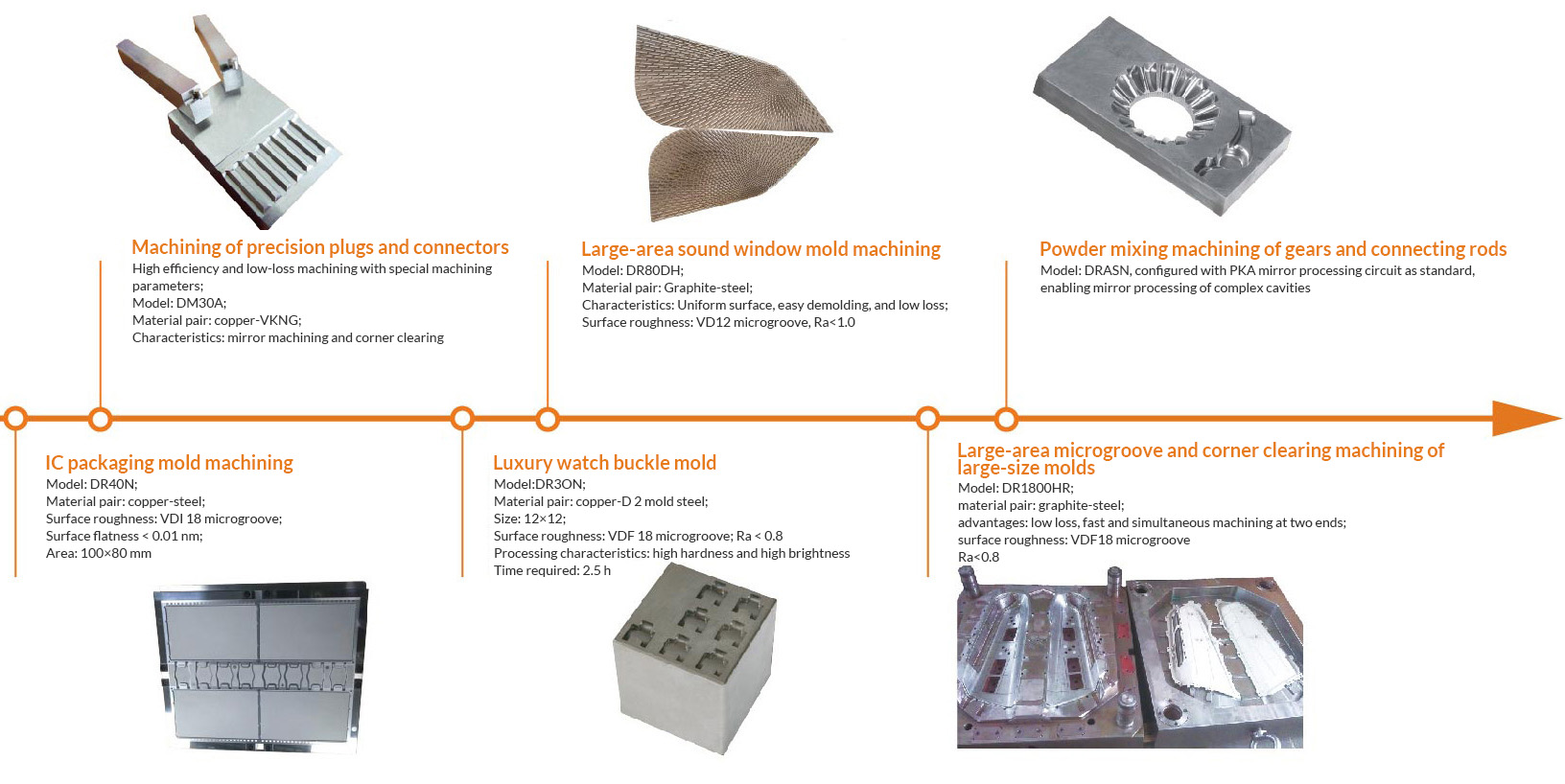

Case study

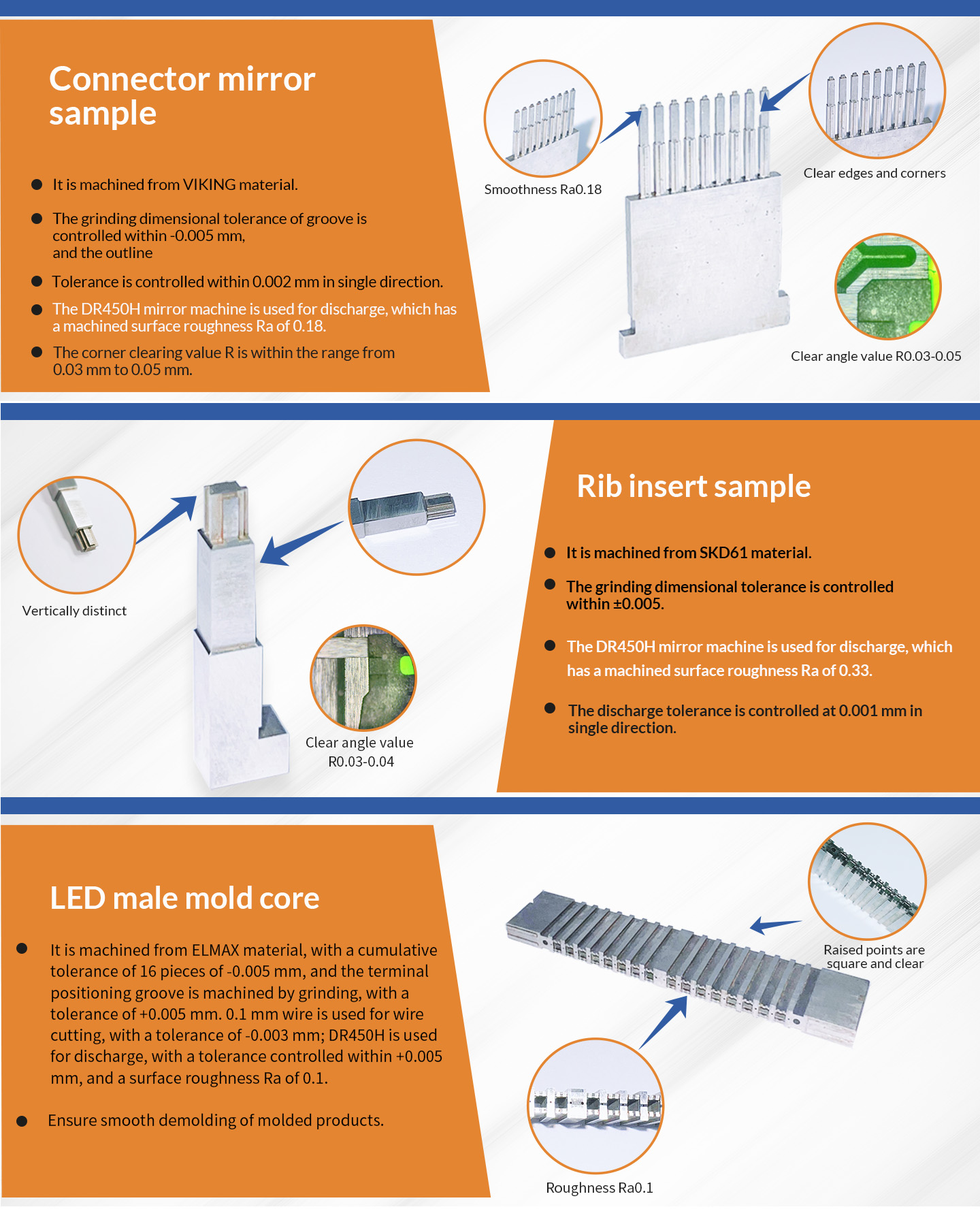

详情页1 英文78.jpg





Equipment parameters

Name

 DR450H

CNC power cabinet



Model

AD-40

Operating system

Windows

Language

Chinese and English

Input mode

Touch screen, keyboard, USB flash drive, LAN

Number of control axes

Three axis linkage

Minimum drive unit

0.001

Maximum processing current

50A

Maximum machining efficiency
(mm³/min)

≥500(Gr-St)
   ≥400(Cu-St)

Minimum electrode loss

≤0.1%

Optimum surface roughness

Ra≤0.08

Display mode

17inch LCD

Power supply type

3PH AC380V. 50-60Hz

Total input power (kVA)

9

Weight of power cabinet (kg)

450

Machine

Specifications and parameters

Travel at X, Y and Z axes (mm)

450×350×320

Positioning accuracy (mm)

0.005

Repositioning accuracy (mm)

0.003

Workbench size (mm)

700×400

Distance from electrode mounting plate to workbench (mm)

365/685

Maximum electrode weight (kg)

75

Maximum workpiece weight (kg)

700

Internal dimensions of machining liquid tank (mm)

1000×650×400

Volume of oil tank (L)

500

Lubrication system

Electronic automatic control

Fire protection device

Electronic automatic control

Host weight

2300

Complete machine



machine overall size

1700×2320×2305

Optional accessories



100A/200A Electric cabinet

//

Voltage stabilizing device

Optional

Spark oil cooling device

Optional

Grating ruler

Optional

EROWA/3R fixture

Optional

C-axis

Optional

R axis

Optional

Revolving stage

Optional

Electrode library

Optional, T4

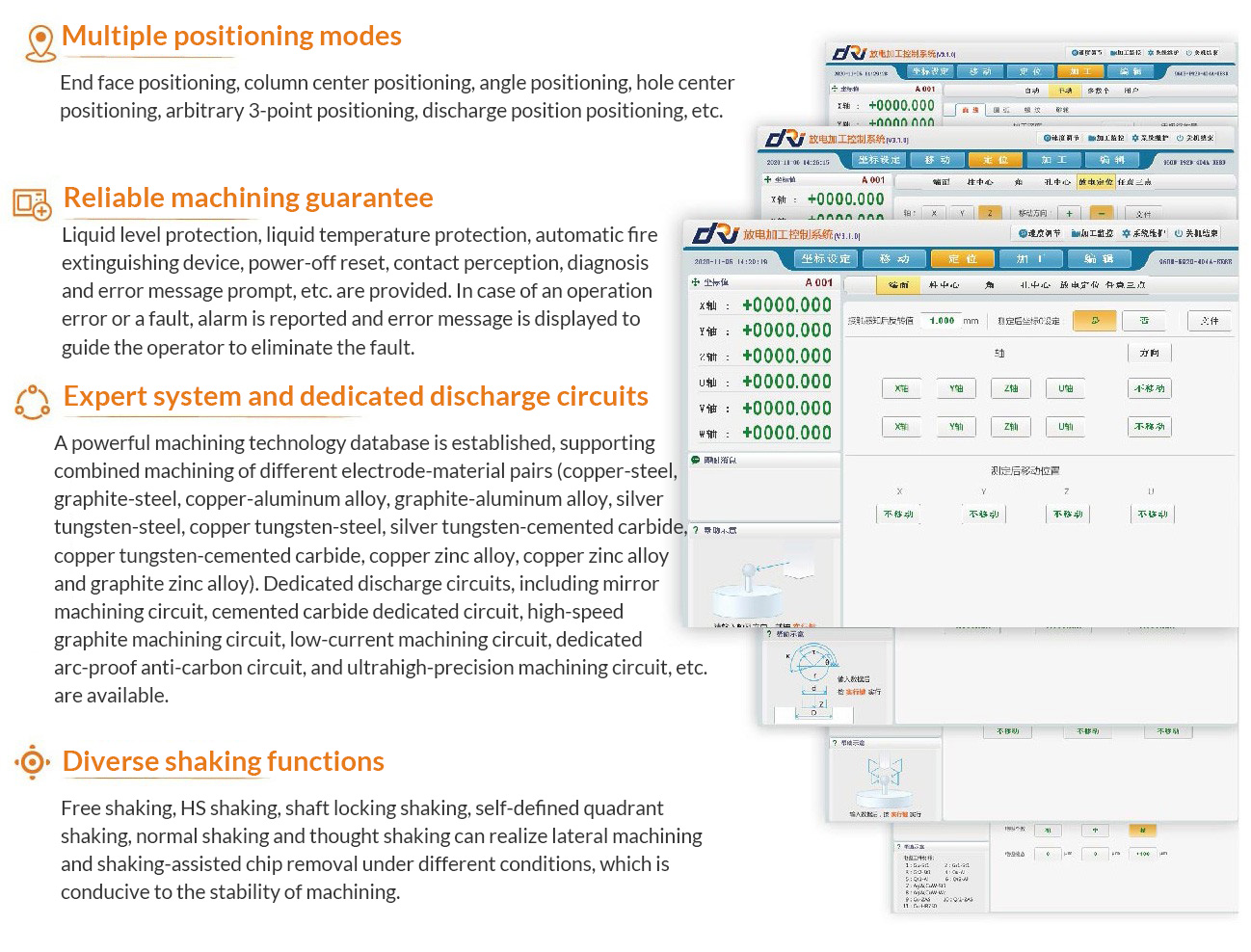

System control


Quality assurance


System characteristics
