Fiber laser marking machine

Fiber laser marking machine is a new generation laser marking machine system developed with advanced laser technology in the world today. The marking function is achieved by using a fiber laser to output laser, which is then scanned by a high-speed galvanometer scanning system. The fiber laser marking machine has high electro-optical conversion efficiency and is cooled by air. The whole machine has compact size, excellent output beam quality, and high reliability. According to customer requirements and process requirements, the D series for deep engraving of molds, M series for black and color marking of anodized aluminum and stainless steel surfaces, E series for marking on plastic surfaces of cold optical fibers, L series for large-size marking of gantry, and A series for mobile marking of multi-axis platform are launched by combining with the automated assembly line structure, desktop and handheld appearance structures, etc.

product details

Equipment performance

The air-cooled fiber laser of well-known German/Chinese brands with high electro-optical conversion efficiency and stable power is adopted;

The good beam quality creates high-precision marking effect, with clear and aesthetically pleasing markings;

The high-speed digital galvanometer with fast marking speed is adopted, saving you high labor costs;

The dedicated laser control card realizes fully automatic marking and supports direct import of external files, reducing personnel operations;

The integrated modular design ensures compact size, saving you valuable factory space;

The marking is environmentally friendly, does no fade, is not easy to be imitated and altered, and is highly anti-counterfeiting to a certain extent;

The machine is low in power consumption, requires no consumables, is ready for use at anytime, is energy-saving, and has a power of only 600 W;

It is available for machining of various metals, rigid plastics, and some non-metals, with simple and easy-to-learn software operation and powerful functions; and, it can be used for engraving of information such as serial number, one-dimensional barcode, QR code, characters, date of manufacture, company name, website, trademark, contact phone number, and various graphics;

The machine is environmentally friendly, aesthetically pleasing, durable, and has higher load-bearing and impact resistance, as well as high durability and safety.

Configuration list

No.	Component Name	Specification	Quantity
01	Fiber laser	20W1064nm fiber laser with better beam mode, higher peak power, and more stable operation;	1PCS
02	Galvanometer	High-speed digital galvanometer system with high precision:	1PCS
03	Power system	MEAN WELL dedicated power supply:	1PCS
04	Field lens	Imported from Singapore, with high flatness and better transmittance:	1PCS
05	Software system	JCZ USB control card, with communication development function	1PCS
06	Integrated casing	Made by LM	1PCS
07	IPC	Advantech IP	1PCS
08	Display	Founder 19-inch display	1PCS

Equipment parameters

Equipment Model	LMT-FL20G
Laser	Fiber laser
Average laser powe	20W
Laser wavelength	1064nm
Cooling mod	Air-coole
Beam mod	TEM00(M2≤2)
Repetition frequenc	30kHz-80kHz
Repetitive positioning precisio	±0.03mm
Galvanometer scanning spee	7000mm/s
Machining scop	110 mm*110 mm (optional)
Laser safety leve	ClassIV
Suggested environmental requirement	10-30℃，40-80%RH
Equipment power suppl	220 V±5%/50 Hz/0.6 kW
Product dimensions	00 mm650 mm1,450 mm (customizable)

Laser control software

The control software configured on the laser marking machine is easy to operate, learn, and use: 1. It is available for design and machining of simple graphic patterns;


2. The software supports TrueType fonts, single line fonts (JSF), SHX fonts, raster fonts (DMF), one-dimensional barcodes, and two-dimensional barcodes;

3. The flexible variable text processing enables real-time text alterations during processing, allowing for direct dynamic reading and writing of text files and Excel files;

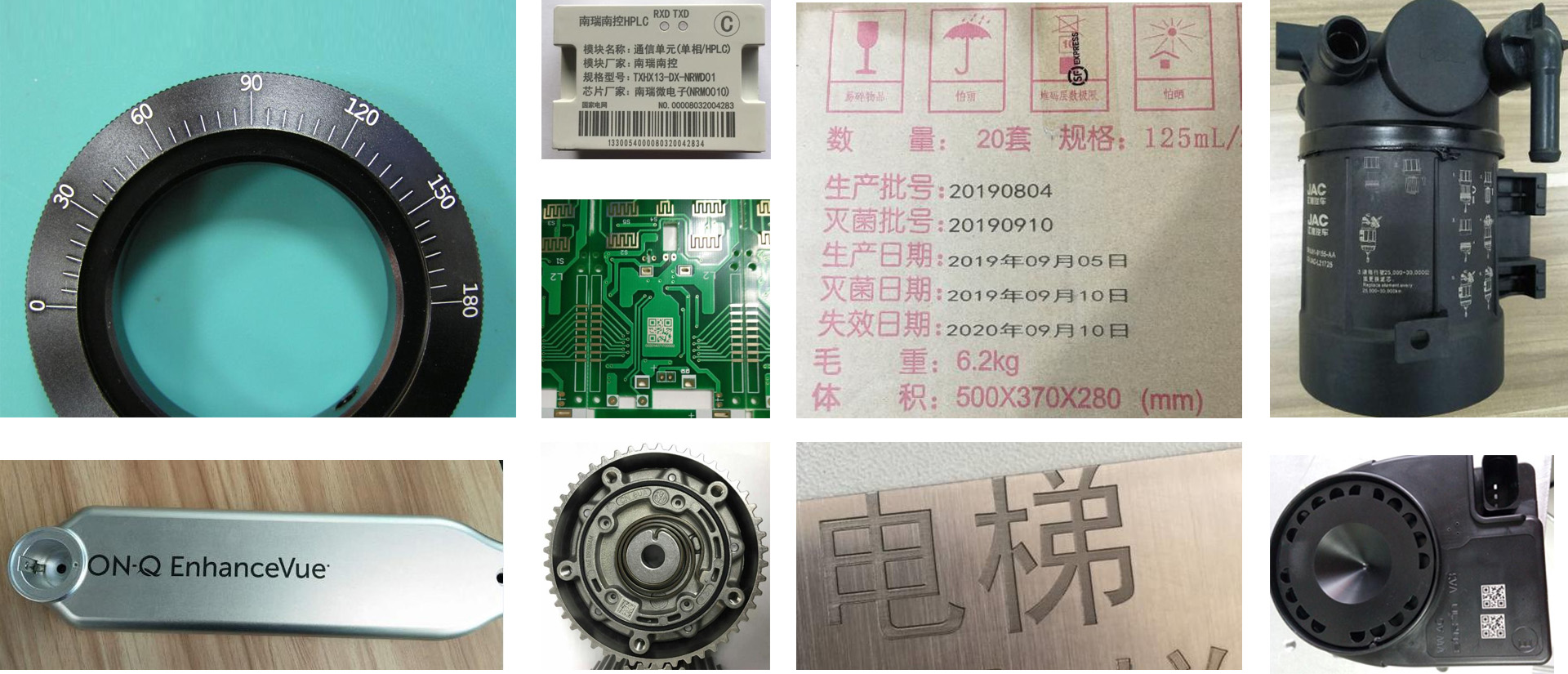

Application pictures


Partners

Maintain an average annual growth rate of 180% for 7 consecutive years

Company honors


Application fields

It is available for engraving of metal materials and some non-metallic materials, and is mainly used in fields with high requirements for depth, smoothness, and precision, such as electronic components, hardware tool products, electrical products, daily consumer goods, sensors, automotive components, 3C electronics, handicrafts, precision machinery, gifts and decorative accessories, high and low-voltage electrical appliances, sanitary ware industry, battery industry, and IT industry.


Service and support

Solution

▶ Quickly provide solutions based on customer requirements.

▶ Customers can visit the company's headquarters for on-site testing and experience.

Service philosophy

▶ Quick response

▶ Enthusiastic attitude

▶ Work meticulously

Service commitment

▶ The equipment is provided with a free one-year warranty and lifelong maintenance service

▶ Provide users with thoughtful operation and maintenance tips and comprehensive after-sales support system

▶ Within 24 hours for response service for domestic customers

▶ Provide extensive software and hardware support even after the warranty period expires
